12 GE Aerospace Mechanical Engineer Interview Questions & Answers

In my current work, I incorporate a quality mindset by building quality into the engineering process from the beginning rather than relying only on final inspection. I make sure requirements and critical characteristics are clear, then I consider whether the selected manufacturing process, tooling, fixtures, and inspection methods can consistently support those requirements. When an issue appears, I focus on understanding and removing the root cause instead of only correcting the individual part. I also use inspection and process data to verify that corrective actions are effective and feed lessons learned back into the design or manufacturing process.

A quality mindset means preventing defects and controlling variation instead of depending on inspection to catch problems after they occur. In my current work, I incorporate that mindset by starting with clear engineering requirements and identifying characteristics that are important to function, manufacturability, and acceptance. I then consider whether those characteristics can be produced and measured reliably.

For example, if a dimension has a tight tolerance, I do not assume the manufacturing process can hold it consistently just because one prototype meets the drawing. I consider the production process, tooling, fixture repeatability, inspection method, measurement uncertainty, cycle time, and expected variation. Where sufficient stable process data are available, capability measures such as Cp and Cpk can help determine whether the process has enough margin relative to the specification limits. I would only interpret those metrics after confirming that the measurement method is suitable and that the process is reasonably stable.

I also try to make quality visible during the process. Critical characteristics can be identified in a control plan, with appropriate inspection or statistical process control used where justified. This helps detect trends before they become repeated defects. The amount and type of inspection should match the risk and maturity of the process rather than being added automatically to every feature.

When a nonconformance occurs, I focus on more than dispositioning the affected part. I contain the immediate issue, determine what changed, identify the root cause, implement an appropriate corrective action, and then verify with evidence that the action prevents recurrence. Depending on the cause, that improvement could involve the design, tolerance, machining parameters, fixture, tooling, work instructions, inspection method, or another part of the manufacturing process.

I also distinguish prototype success from production readiness. A prototype process may rely on extra manual attention or inspection that is not practical at production volume. Before considering a process production-ready, I look at process capability, tooling robustness, inspection access, scrap risk, cycle time, and whether the process can repeatedly satisfy the engineering requirements.

• Which product or process characteristics are considered most critical to quality?
• What manufacturing volume and process maturity are involved?
• What inspection and measurement methods are available for those characteristics?
• Is there stable production data that can support process-capability or statistical-process-control decisions?
• What evidence is required before a corrective action or manufacturing change is considered effective?

I would explain that quality is part of every engineering decision I make. I begin with clear requirements, connect critical tolerances to manufacturing and measurement capability, and consider how variation could affect the final product. I use inspection and process data to identify trends, and when a problem occurs, I look for the root cause rather than repeatedly fixing the symptom. I also verify corrective actions with evidence and use the lessons learned to improve the design or manufacturing process. The key point is that I view quality as prevention, process control, and continuous learning, not just final inspection.

1. Clarify the engineering requirements and identify characteristics that are critical to function or acceptance.
2. Select or review the manufacturing process based on material, geometry, tolerance, production volume, and cost.
3. Check whether tooling, fixtures, inspection access, and the measurement method are suitable for the required characteristics.
4. Identify likely sources of process variation and establish appropriate controls for critical characteristics.
5. Use inspection or process data to monitor performance; use Cp, Cpk, or statistical process control only when the measurement system and process data support those methods.
6. When a defect occurs, contain the immediate issue and determine the underlying root cause instead of only correcting the individual part.
7. Implement the appropriate corrective action in the design, process, tooling, fixture, inspection method, or work instructions as supported by evidence.
8. Verify the corrective action using objective data and check for recurrence.
9. Feed lessons learned back into future design and production decisions.

A stronger quality approach can require additional planning, measurement, tooling, or process controls, but those efforts must be balanced against production volume, cycle time, scrap, cost, and risk. Very tight tolerances can increase manufacturing and inspection difficulty without improving function, while insufficient control can create variation and rework. The goal is to apply the right level of prevention and verification to the characteristics that matter most.

Common mistakes include treating quality as the responsibility of the inspection team alone, assuming that one acceptable prototype proves production capability, tightening tolerances without considering process capability or functional need, quoting Cp or Cpk without confirming process stability and suitable measurement, adding inspection without addressing the source of variation, and correcting individual defective parts without determining why the defect occurred.

Give a clear prevention-to-verification story. Explain how you clarify requirements, identify critical characteristics, consider manufacturing and measurement capability, respond to variation with root-cause thinking, and verify that corrective actions work. If you do not have a specific measured result to support an example, do not invent one; emphasize the engineering method and the evidence you use.

I would use a real project from my experience where simulation was needed to answer a specific engineering question. I would explain the decision first, then describe how I selected the appropriate physics and model fidelity. I would cover the geometry, material assumptions, loads, constraints, contacts, and operating conditions, then explain how I checked the model with a hand calculation and a mesh-convergence or sensitivity study. I would also describe how I separated physical results from numerical artifacts and compared the prediction with available test evidence before using the simulation to support the engineering decision.

A good answer should center on one real simulation from your experience and explain how it supported an engineering decision. Start with the problem that needed to be solved, then show how you selected, verified, interpreted, and validated the model. Because no project-specific dimensions, loads, material properties, test results, or employer procedures are supplied here, those details should come from your actual experience rather than being invented.

• What engineering decision was the simulation intended to support?
• Which result was most important: displacement, stress, temperature, pressure, flow rate, natural frequency, buckling load, or another response?
• Were the loads and boundary conditions measured, specified, or estimated?
• Was the objective an early design comparison or a higher-fidelity prediction requiring test correlation?
• What experimental or analytical evidence was available for validation?

Begin by explaining the engineering problem and the decision that depended on the simulation. For example, the objective might have been to determine whether a component required a design change or to compare design concepts. Clearly separate what was known, what had to be assumed, and what the simulation needed to predict.

Next, explain how you selected the model fidelity. For a structural problem, that could include deciding between beam, shell, or solid finite elements and deciding whether the behavior could reasonably be treated as linear or required nonlinear material, geometric, or contact behavior. For a thermal or fluid problem, select the physics and model fidelity from the operating conditions and the accuracy required for the engineering decision.

Then describe the model setup. Define the geometry included in the model, coordinate system, units, material model, loads, constraints, interfaces, and contacts. Boundary conditions require particular attention because an unrealistically rigid constraint can create artificial stresses or make a structure appear stiffer than it really is. Justify important simplifications rather than assuming default solver settings represent the physical system correctly.

After building the model, perform numerical verification. Start with a hand calculation or reduced-order estimate whenever practical. The objective is not necessarily to reproduce every local result, but to confirm the expected order of magnitude and physical behavior. Check equilibrium or conservation where applicable.

Next, perform a mesh-convergence study. Refine the mesh in regions that influence the engineering decision and track the result of interest. If that result changes materially with mesh refinement, the earlier value should not be treated as sufficiently converged. Also review mesh quality and solver convergence. Solver convergence means the numerical solution met the specified convergence criteria; it does not demonstrate that the physical model, loads, or boundary conditions are correct.

Inspect the results for physical realism. In structural FEA, for example, distinguish a stress singularity from a meaningful physical peak stress. A stress that continues increasing as the mesh is refined at an idealized sharp corner, point load, or perfectly fixed edge can indicate a mathematical singularity rather than a usable local design stress. In that case, improve the physical representation where appropriate or evaluate the response using a suitable quantity and location that is not dominated by the singularity.

Also perform sensitivity checks on important uncertain inputs such as loads, contact assumptions, material properties, or boundary conditions. This shows whether the engineering conclusion is robust or depends strongly on an uncertain assumption.

Finally, separate verification from validation. Verification asks whether the mathematical model has been solved correctly. Validation asks whether the model represents the real physical system closely enough for its intended use. When relevant test evidence is available, compare predicted and measured quantities consistently and investigate meaningful differences rather than adjusting the model simply to force agreement.

Conclude with the engineering decision. Explain what the simulation supported, which assumptions had the greatest influence, what uncertainty remained, and whether additional testing, measurements, or higher-fidelity analysis would be needed before using the model for a more consequential decision.

1. Define the engineering question and the decision the simulation must support.
2. Separate known inputs, assumptions, unknowns, and required outputs.
3. Select the appropriate physical model and simulation fidelity.
4. Define geometry, coordinates, units, material behavior, loads, constraints, contacts, and operating conditions.
5. Create the discretization and check element or mesh quality.
6. Solve the model and review solver residuals or convergence information as appropriate.
7. Verify the model using hand calculations, equilibrium, conservation, or other independent checks.
8. Perform mesh-convergence and sensitivity studies on decision-critical results.
9. Examine results for unrealistic constraints, numerical artifacts, and singularities.
10. Validate the model against relevant experimental or test evidence when available.
11. Quantify important limitations and uncertainties.
12. Use the verified and appropriately validated results to support the engineering decision rather than treating simulation output as automatically correct.

The main tradeoff is model fidelity versus engineering effort. A simple model can be built and checked quickly but may omit important local effects. A higher-fidelity model can represent more physics, contacts, geometric details, or nonlinear behavior, but it requires more input data, finer meshes, longer solution times, and more verification. Mesh refinement also increases computational cost, so the goal is not simply to use the smallest possible elements everywhere. The mesh should be refined until the result that matters to the engineering decision is sufficiently converged. Uncertain loads, material properties, contacts, and boundary conditions can sometimes affect the conclusion more than additional mesh refinement, which is why sensitivity analysis is important.

Common mistakes include starting with the simulation software before defining the engineering question, accepting default boundary conditions without justification, over-constraining the model, using an inappropriate element type or physical model, reporting a highly localized singular stress as a physical design stress, trusting solver convergence without performing model verification, skipping a mesh-convergence study, mixing units, ignoring uncertainty in loads or contacts, and claiming that a simulation proves a design is safe without suitable validation and engineering review.

Use one real simulation from your experience and organize the story around the engineering decision. Explain why you selected that model, how you justified the important assumptions and boundary conditions, how you verified convergence, and what evidence you used for validation. Interviewers usually learn more from how you challenged and checked the model than from the name of the simulation software.

I use warranty data as field evidence to identify recurring failure patterns and guide root cause investigation. I first clean and organize the data by product, component, failure symptom, operating history, time or usage to failure, and any available inspection findings. Then I look for trends such as repeated failure modes, early-life failures, environmental correlations, or changes by production period. I do not treat the warranty code itself as the root cause. I use the pattern to form hypotheses, preserve failed-part evidence where available, compare actual service conditions with design assumptions, and confirm the mechanism through inspection, measurement, or testing. After corrective action, I continue tracking the same warranty metrics to verify that recurrence decreases.

Warranty data is valuable because it shows how products are actually failing in service, but it has to be treated carefully. A warranty claim usually records a customer-observed symptom or a service diagnosis, not necessarily the physical root cause. My goal is to convert that information into evidence that helps identify failure modes, investigate mechanisms, prioritize corrective action, and verify whether the fix works.

• What information is available in the warranty records, such as serial or lot information, build dates, operating hours or cycles, service environment, failed component identification, technician comments, photographs, returned hardware, repair actions, and inspection results?
• Is the objective to investigate one specific failure, identify the largest reliability drivers, evaluate a recent design or manufacturing change, or monitor an existing corrective action?
• Do we know the installed population or service exposure for the groups being compared?
• Are representative failed parts available for inspection and root cause analysis?

The quality of the analysis depends heavily on those details. A simple claim count can be misleading if the installed population, operating exposure, reporting practices, or product age differ between groups.

I would then organize the data into useful engineering categories. Typical fields include product configuration, component, reported symptom, confirmed failure mode when known, manufacturing period, service age, operating exposure, environment, repair action, and whether the failed part was returned for analysis. I would standardize inconsistent descriptions so that equivalent failures are grouped together without hiding uncertainty.

Next, I would establish suitable denominators. For example, comparing 100 claims from one configuration with 20 claims from another is not meaningful unless I know how many units were in service and, when available, their exposure such as operating hours or cycles. Depending on the available data, I might compare claim rate per installed unit, failure rate by exposure, time-to-failure distributions, or the fraction of claims associated with particular failure modes.

I would look for patterns rather than immediately choosing a cause. Useful patterns might include failures concentrated early in service, failures after long exposure, clustering by manufacturing period, configuration, supplier lot, environment, duty cycle, or maintenance history. I would also check whether the apparent increase is real or caused by changes in fleet size, reporting, warranty policy, or data coding.

Once a meaningful pattern appears, I would separate the reported symptom from the physical failure mode, failure mechanism, and root cause. For example, a warranty record might say that a component was noisy. That is a symptom. Inspection might identify bearing damage as the failure mode, inadequate lubrication or misalignment as a possible mechanism, and an assembly-process or design-condition mismatch as a potential root cause. Those conclusions would still need supporting evidence.

I would form competing hypotheses and compare them with the available evidence. Depending on the problem, that could involve inspection of returned hardware, dimensional measurements, fracture-surface examination, wear patterns, lubrication condition, vibration data, temperature history, alignment measurements, material evaluation, or comparison with design loads and service conditions. Tools such as a fault tree, Five Whys, fishbone analysis, or FMEA can help organize the reasoning, but the conclusion still needs physical evidence.

If failed parts are available, I would preserve them before destructive examination and document their as-received condition. That protects potentially important evidence such as fracture surfaces, deposits, wear marks, corrosion products, lubricant condition, or assembly orientation.

After identifying a defensible root cause, I would define corrective action that addresses that cause rather than only replacing the failed component. The action could involve design, material, manufacturing, assembly, maintenance, inspection, or operating guidance, depending on what the evidence supports. I would then validate the action with an appropriate test or inspection under representative conditions before relying on field data alone.

Finally, I would continue monitoring the warranty population using the same definitions and normalized metrics. A successful corrective action should produce a measurable reduction in the targeted failure mode without creating another problem. I would also account for the delay between introducing a change and accumulating enough service exposure to evaluate it fairly.

I would explain that I treat warranty data as a starting point for engineering diagnosis, not as proof of root cause. I first make the data comparable by cleaning the failure descriptions and normalizing claims by population or service exposure where possible. Then I identify meaningful patterns by component, configuration, service age, manufacturing period, and operating condition.

From there, I translate the field symptom into a physical investigation. I develop competing hypotheses, examine returned parts and measurements when available, compare actual operating conditions with design assumptions, and use root cause methods to organize the evidence. I avoid replacing components based only on claim frequency because that can correct the symptom without eliminating the mechanism.

Once the root cause is supported by evidence, I implement and validate the corrective action and keep tracking the same warranty metrics to confirm that the targeted failure rate decreases. The key idea is that warranty data helps me decide where to investigate, physical evidence establishes why the failure occurred, and post-correction warranty trends help verify whether the solution was effective.

1. Define the purpose of the warranty analysis and the product population being evaluated.
2. Collect relevant claim information, including configuration, component, symptom, service age or exposure, manufacturing information, repair action, and returned-part evidence when available.
3. Clean and standardize descriptions while preserving uncertainty and the original evidence.
4. Establish appropriate denominators such as installed population, operating hours, or cycles before comparing groups.
5. Segment the data by component, failure symptom or confirmed failure mode, configuration, manufacturing period, service age, environment, and other relevant operating conditions.
6. Identify recurring patterns, unusual concentrations, early-life or wear-out behavior, and changes over time.
7. Separate symptom, failure mode, physical mechanism, and potential root cause.
8. Develop competing hypotheses and test them using inspections, measurements, service history, returned-part analysis, and comparison with design assumptions.
9. Use structured methods such as fault tree analysis, Five Whys, fishbone analysis, or FMEA where they improve the investigation.
10. Select corrective action only after the evidence supports the root cause.
11. Validate the correction under representative conditions with a repeatable test or inspection method.
12. Continue monitoring normalized warranty metrics to verify that recurrence decreases and that no new failure mode is introduced.

The main tradeoff is between acting quickly on an apparent field trend and waiting for enough evidence to avoid fixing the wrong problem. Large claim counts can be useful, but they can also be misleading when fleet size, service exposure, product age, warranty coverage, or reporting behavior differs between groups. More detailed returned-part inspections and testing improve confidence in the root cause but require additional time and resources. The analysis therefore needs enough statistical context to identify meaningful patterns and enough physical evidence to explain the actual failure mechanism.

Common mistakes are treating the warranty complaint as the root cause; comparing raw claim counts without considering installed population or service exposure; assuming correlation with a production period, supplier, or operating condition proves causation; replacing failed components before preserving evidence; grouping different failure mechanisms under one generic code; ignoring missing or inconsistent field data; jumping to one hypothesis without testing alternatives; and declaring a corrective action successful before enough representative service exposure has accumulated.

Emphasize the chain from field data to physical evidence: warranty data identifies the pattern, engineering investigation establishes the failure mechanism and root cause, corrective action addresses that cause, and continued warranty monitoring verifies that recurrence decreases. That shows stronger troubleshooting judgment than simply saying you analyze claim trends.

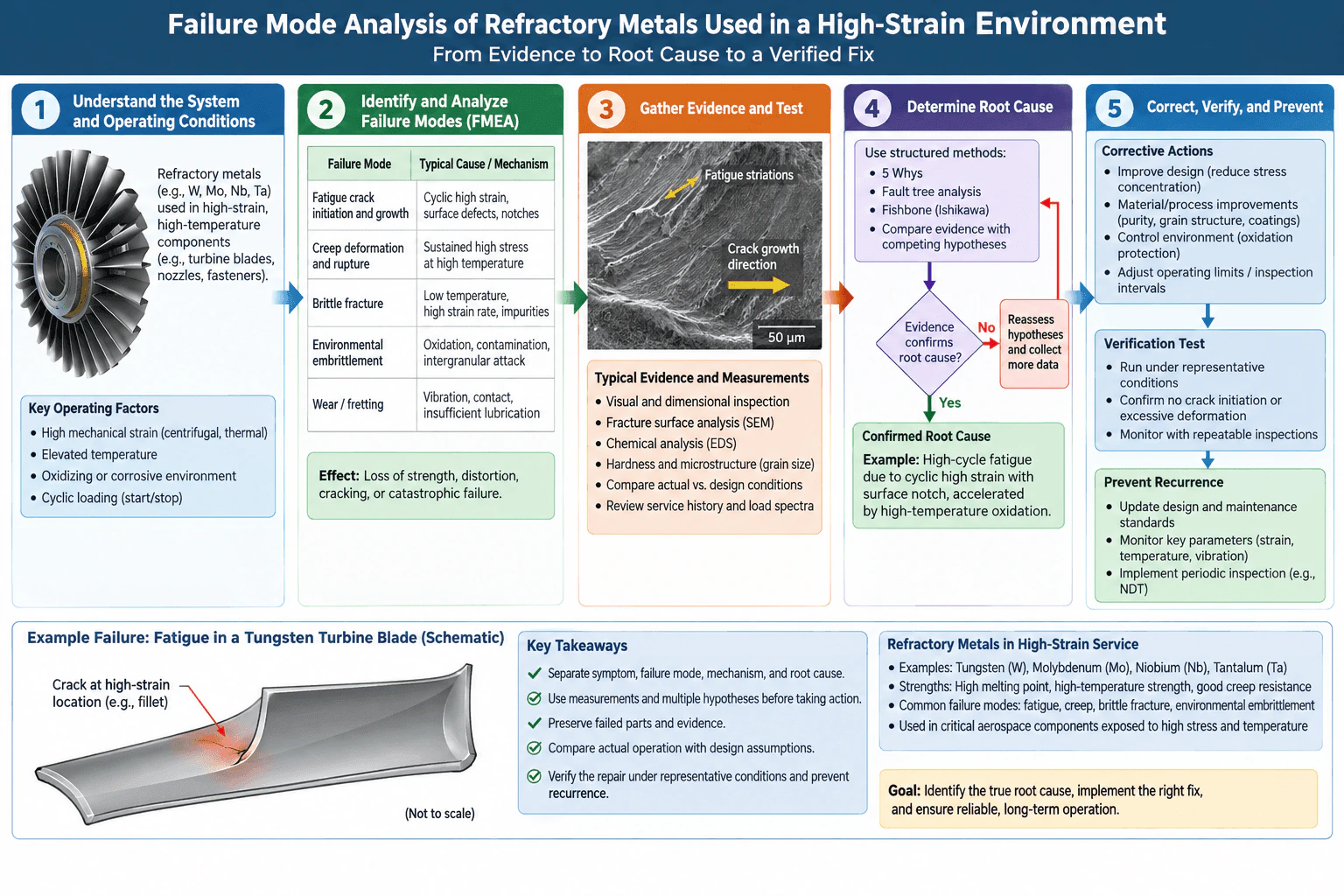

I would treat this as an evidence-driven root-cause problem. First, I would define the actual strain history, stress concentration, temperature, environment, vibration, and service history. Then I would consider competing failure modes such as fatigue, creep or creep rupture, brittle fracture, environmental embrittlement or oxidation-related degradation, and fretting wear. I would preserve the failed component and use visual and dimensional inspection, fracture-surface microscopy, chemical analysis, hardness, and microstructural examination to distinguish those mechanisms. I would compare the evidence with the design assumptions, use FMEA and root-cause tools to test competing hypotheses, and only then select corrective action. Finally, I would verify the change under representative conditions and establish inspection or design controls to prevent recurrence.

Refractory-metal failure analysis is not just identifying that a part cracked. The important distinction is between the symptom, the failure mode, the physical mechanism, and the root cause. A crack is a symptom. Fatigue may be the failure mode. Repeated cyclic strain at a local stress concentration may be the mechanism. The root cause could be an unexpected load spectrum, a surface notch, vibration, an unsuitable operating condition, environmental degradation, or another condition that made the local strain more severe than intended.

For refractory metals such as tungsten, molybdenum, niobium, and tantalum, I would first define the service boundary conditions. A high-strain component can also experience elevated temperature, thermal cycling, vibration, contact loading, and an oxidizing or otherwise aggressive environment. The dominant mechanism depends on the particular alloy, temperature, strain rate, microstructure, environment, geometry, and loading history, so I would not select one failure mode before examining the evidence.

The main competing failure modes I would consider are fatigue crack initiation and growth under cyclic strain, creep deformation or creep rupture under sustained stress at elevated temperature, brittle fracture where material condition and operating conditions limit ductility, environmental embrittlement or oxidation-related degradation, and wear or fretting where contacting surfaces experience vibration or repeated micro-motion. More than one mechanism can interact. For example, environmental surface damage can create or intensify an initiation site for a fatigue crack.

My diagnostic path would begin by preserving the failed component and establishing safe conditions for inspection. I would document the crack location, deformation, discoloration, surface damage, fracture orientation, and obvious stress concentrators before cleaning or sectioning the part. I would also collect the operating history, including temperature exposure, load or strain cycles, vibration, starts and stops, excursions, maintenance history, and differences between actual operation and the original design assumptions.

Next, I would inspect and measure the evidence. Visual and dimensional inspection can identify distortion, section loss, wear, or geometry changes. Fracture-surface examination, including SEM when appropriate, can reveal initiation sites and features consistent with progressive crack growth. Chemical analysis such as EDS can help identify contamination or deposits associated with environmental exposure. Hardness and microstructural examination can provide evidence of changes in material condition. I would treat each observation as evidence that supports or weakens a hypothesis rather than treating one feature as automatic proof of the root cause.

I would then organize the competing hypotheses using FMEA, fault-tree analysis, Five Whys, or fishbone analysis. In a qualitative FMEA, I would identify each credible failure mode, its physical cause or mechanism, its effect on the component, the available evidence, and the controls or measurements that can detect or distinguish it. I would avoid inventing numerical severity, occurrence, detection, or risk-priority values unless actual data were provided.

For each hypothesis, I would ask what evidence should exist if it were true and what measurement could distinguish it from the alternatives. If cyclic high strain is suspected, I would look for a credible initiation site, a loading history consistent with repeated cycling, and fracture-surface evidence consistent with progressive crack growth. If creep is suspected, I would look for deformation and microstructural evidence compatible with sustained high-temperature loading. If environmental degradation is suspected, I would correlate surface, chemical, or microstructural evidence with the actual exposure conditions.

A useful hypothetical example consistent with the failure-analysis diagram is a tungsten turbine-blade-type component used only as a schematic teaching case. Suppose a crack starts at a high-strain fillet or surface notch, the service history confirms strong cyclic loading, and the fracture surface supports progressive fatigue crack growth. If inspection also finds high-temperature oxidation around the initiation region, a defensible confirmed root-cause statement could be: high-cycle fatigue caused by cyclic local strain at a surface stress concentration, with high-temperature oxidation acting as an accelerating contributor. That conclusion would only be valid if the physical evidence and operating history supported each part of it.

The root-cause decision must remain evidence based. If the evidence does not confirm the leading hypothesis, I would reassess the hypotheses, collect more data, and repeat the comparison rather than force a conclusion. This keeps the confirmed branch separate from the unconfirmed branch and prevents corrective action from being based on an assumption.

Corrective action must address the confirmed cause. Depending on the evidence, that could mean reducing a stress concentration, changing geometry, improving material or process control, improving grain structure or surface condition, adding appropriate environmental protection, changing operating limits, reducing damaging vibration, or adjusting inspection intervals. I would not select one of those actions until the evidence identifies which mechanism and cause actually matter.

The final step is verification. I would test the corrected design, process, or operating condition under representative mechanical, thermal, and environmental conditions and confirm that the original failure mechanism no longer initiates or progresses unacceptably. I would also define repeatable inspections or monitoring for important parameters such as strain, temperature, vibration, and surface condition. Lessons learned should feed back into the design assumptions, FMEA, maintenance standards, and inspection plan.

• Which refractory metal or alloy is being considered: tungsten, molybdenum, niobium, tantalum, or another alloy system?
• Is the high strain primarily cyclic mechanical strain, thermal strain, centrifugal loading, vibration, contact loading, or a combination?
• What temperature range and thermal-cycle history does the component experience?
• Is the environment vacuum, inert, oxidizing, corrosive, or contaminated by another material?
• Is there an actual failed component available for fracture-surface and microstructural examination?
• Do we have service-history data that can be compared with the original design load and temperature assumptions?

I would explain the analysis as an evidence-to-hypothesis-to-test-to-root-cause loop. First, define what the component actually experienced. Second, list the plausible failure modes without choosing one too early. Third, preserve and measure the physical evidence. Fourth, compare that evidence with the competing mechanisms and design assumptions. Fifth, confirm the root cause using repeatable measurements or representative testing. If the evidence does not confirm the hypothesis, collect more data and reassess. Only after confirmation would I choose corrective action. I would finish by verifying the correction under representative conditions and feeding what was learned back into design, FMEA, inspection, and maintenance.

1. Preserve the failed part and establish safe inspection conditions.
2. Define the actual operating envelope: strain or load history, temperature, thermal cycles, vibration, environment, geometry, and service history.
3. Separate the observed symptom from the failure mode, mechanism, and possible root cause.
4. Build competing hypotheses for fatigue, creep or creep rupture, brittle fracture, environmental degradation or embrittlement, and wear or fretting as applicable.
5. Perform visual and dimensional inspection before destructive preparation.
6. Examine fracture surfaces and microstructure; use SEM, chemical analysis such as EDS, hardness measurements, and other appropriate measurements when they can discriminate between hypotheses.
7. Compare actual conditions and physical evidence with design assumptions and expected material behavior.
8. Use FMEA, fault-tree analysis, Five Whys, or fishbone analysis to organize causes and identify missing evidence.
9. Reject or retain each hypothesis based on measured evidence. If the evidence is insufficient, collect additional data and reassess instead of declaring a root cause.
10. State the confirmed failure mode, mechanism, contributing factors, and root cause separately.
11. Select corrective action that directly addresses the confirmed root cause.
12. Verify the change under representative mechanical, thermal, and environmental conditions.
13. Define recurrence-prevention measures such as design updates, operating controls, monitoring, and repeatable inspection intervals.

The main tradeoff is between speed of diagnosis and confidence in the root cause. Visual inspection is fast and inexpensive but may not distinguish fatigue, creep, embrittlement, or environmental damage by itself. Microscopy, chemical analysis, hardness testing, microstructural examination, strain or vibration measurement, and representative component testing provide stronger evidence but require more time, equipment, and sample preparation. Destructive sectioning can reveal important internal evidence but should be delayed until the original fracture surfaces and geometry are documented. Corrective actions also have tradeoffs: reducing stress concentration may affect geometry or weight, material or process changes may affect manufacturability, environmental protection may add coating or process requirements, and tighter operating limits may reduce usable performance. The correct balance depends on the confirmed mechanism and the consequence of recurrence.

Common mistakes are calling the visible crack the root cause; assuming fatigue, creep, or embrittlement before examining evidence; cleaning or altering the failed surface before documenting it; treating all refractory metals as if they have identical behavior; ignoring the interaction between strain, temperature, environment, vibration, and stress concentration; relying on a simulation without correlating it to measurements; treating a fracture-surface feature as proof without supporting service history; changing the material or replacing the component before confirming the mechanism; and declaring the problem solved without a representative verification test or recurrence-prevention plan.

Use the sequence 'symptom → failure mode → mechanism → root cause → corrective action → verification.' Name several plausible mechanisms, then explain what physical evidence would distinguish them. That demonstrates stronger engineering judgment than immediately guessing a single cause. If you use the diagram's fatigue-in-a-tungsten-turbine-blade example, explicitly call it a hypothetical schematic example unless actual material, geometry, loading, and inspection evidence are provided.
