10 Lockheed Martin Mechanical Engineer Interview Questions & Answers

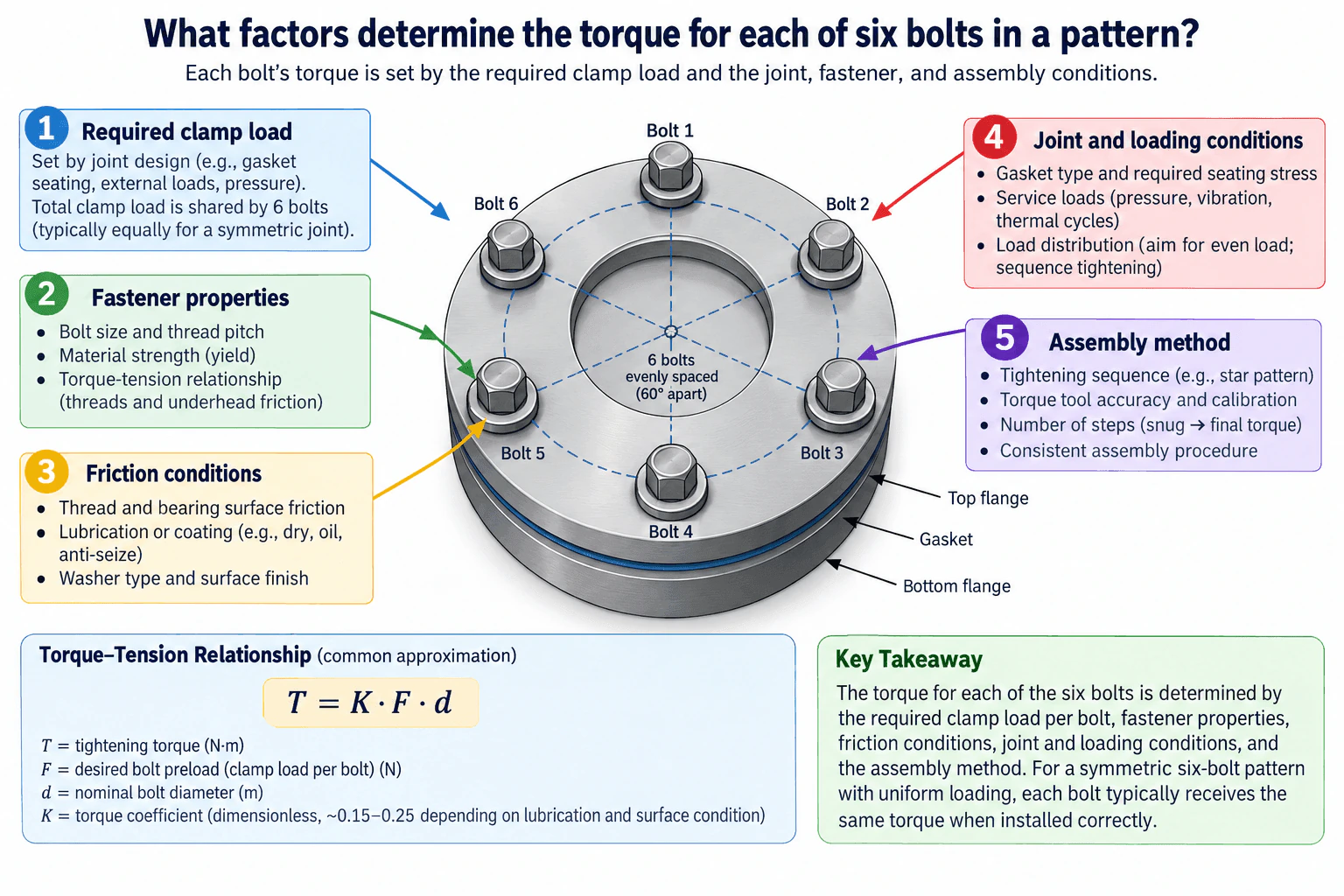

I would first determine the clamp load the joint needs from the external loads, gasket or interface requirements, and joint stiffness. Then I would determine how that load is shared by the six bolts. For a symmetric pattern with uniform axial loading, each bolt typically carries about one-sixth of the required total clamp load. I would convert the required preload per bolt to tightening torque using the approximate relationship T = KFd, where K represents thread and under-head friction, F is desired preload, and d is bolt diameter. I would also check bolt size, thread pitch, material strength, lubrication or coating, washer and surface conditions, and use a calibrated torque tool with a staged opposing tightening sequence to obtain even preload.

The important idea is that the six-bolt pattern does not directly determine the torque. Torque is an installation input used to create bolt preload, and the required preload comes from the joint's mechanical requirements.

A useful first-order relationship is:

T = KFd

where T is tightening torque in N·m, F is the desired bolt preload in N, d is the nominal bolt diameter in m, and K is a dimensionless torque coefficient that represents the combined effects of thread and bearing-surface friction. The approved diagram shows about 0.15–0.25 as an illustrative common range for K depending on lubrication and surface condition. That range is not universal; the value used for design or assembly must match the actual fastener, lubrication, coating, washer, and surface condition.

For a symmetric six-bolt pattern with identical bolts, uniform joint stiffness, and a centered axial load, a reasonable starting assumption is equal preload in all six bolts. If the total required clamp load is F_total, the nominal preload target is approximately F_total/6 per bolt. The same bolt diameter and friction condition would then lead to the same target torque for all six bolts.

That equal-load assumption changes when the joint is not symmetric. An eccentric external load or applied moment can increase the required load on bolts on one side of the pattern. Nonuniform flange stiffness, gasket compression, surface variation, or different friction conditions can also make individual bolt preload requirements or achieved preload unequal.

The main factors are therefore:

1. Required clamp load. The joint must have enough preload to maintain the interface, seat a gasket when applicable, resist relevant service loads, and avoid unwanted separation or slip.
2. Fastener properties. Bolt size, thread pitch, material strength, and allowable preload limit how much tension the fastener can safely carry.
3. Friction conditions. Thread friction and under-head or washer-bearing-surface friction strongly affect how much preload is produced by a given torque. Lubrication, coatings, washers, and surface finish can change this relationship.
4. Joint and loading conditions. Gasket type and required seating stress, flange stiffness, pressure, vibration, thermal cycles, axial load, eccentric loading, and applied moments influence the required clamp load and its distribution.
5. Assembly method. Tightening sequence, torque-tool accuracy and calibration, number of tightening steps or passes, and assembly consistency influence how evenly preload is established around the six-bolt pattern.

A practical design path is to determine the joint load cases first, establish the required total clamp load, calculate or otherwise determine the required preload for each bolt, verify that the selected bolts can carry those preloads with appropriate design margin, and then establish the torque or other tightening-control method. For a symmetric joint, I would normally tighten opposing bolts in a star-style sequence and use multiple passes, such as a snug pass followed by progressively higher passes to the final target. This reduces the chance that tightening one bolt substantially relaxes or redistributes preload in previously tightened bolts.

The main tradeoff is that higher preload can improve resistance to separation, slip, and gasket leakage, but excessive preload can cause bolt yielding, thread damage, excessive gasket compression, or joint deformation. Too little preload can allow separation, interface movement, leakage, vibration-related loosening, or fatigue loading of the bolts. Torque control also has uncertainty because much of the applied torque is consumed by friction rather than becoming bolt tension.

Validation should therefore confirm both the tightening process and the joint response. At minimum, I would confirm the correct fastener and surface condition, verify torque-tool calibration, use the specified tightening sequence and passes, and inspect the joint after assembly. For a critical design, I would use an appropriate preload-verification method or representative joint test rather than assuming that calculated torque alone guarantees the intended bolt tension.

• Is the six-bolt pattern symmetric, and are all six fasteners identical?
• What external axial loads, shear loads, moments, pressure, vibration, and thermal loads act on the joint?
• Is there a gasket or another interface with a required seating or compression load?
• Are the bolts dry, lubricated, coated, or installed with specified washers?
• What bolt size, thread pitch, material or strength grade, and allowable preload are specified?
• Is torque control required, or may preload be controlled by another approved tightening method?

I would say that I do not begin by assigning a torque just because there are six bolts. I start with the required joint clamp load and the load distribution around the bolt pattern. If the geometry and loading are symmetric, I can initially divide the required total clamp load approximately equally among the six bolts. I then check bolt size, thread pitch, material strength, and allowable preload, and use the torque-preload relationship T = KFd with friction conditions that represent the actual threads and bearing surfaces. Finally, I specify a controlled opposing tightening sequence with multiple passes and verify the assembly process. If there is eccentric loading, a moment, unequal stiffness, or different friction conditions, I would not assume that all six bolts require or achieve the same preload.

The calculation itself can be simple for a symmetric joint, but the engineering difficulty is choosing the correct preload and accounting for uncertainty. More preload can keep the joint closed and improve resistance to slip or leakage, but too much can yield the bolt, damage threads, over-compress a gasket, or deform the joint. Torque is also an imperfect measure of preload because thread and bearing-surface friction vary between assemblies. A simple equal-load model is useful for a symmetric six-bolt joint, while eccentric loads, moments, nonuniform stiffness, or critical service may require a more detailed joint analysis and better preload verification.

Welding creates a permanent metallurgical joint by fusing materials, while bolting creates a mechanical joint by clamping parts together with threaded fasteners. Welding can produce a compact and continuous connection, but it introduces heat, possible distortion, residual stress, and weld-inspection requirements. Bolting avoids welding heat and is easier to assemble, inspect, maintain, and disassemble, but it needs holes, fasteners, installation access, and controlled preload. I would choose between them based on material, loading, geometry, production needs, inspection requirements, serviceability, and cost.

Welding and bolting both join components, but they do it in fundamentally different ways. Welding creates a metallurgical bond between materials, typically by locally heating and fusing the joint region, although some welding processes create the bond without melting the base material. Bolting creates a mechanical connection by using fastener preload to clamp separate parts together.

For welding, the main manufacturing advantages are that the joint can be continuous, compact, and free of separate fastener hardware. It can also eliminate drilled fastener holes in the joined region. However, fusion welding introduces localized heat. That can create a heat-affected zone, residual stresses, distortion, and changes in local material properties depending on the materials and process. Weld quality also depends on joint preparation, process control, welder or automated-process capability, access, and inspection.

For bolting, the parts normally remain separate components that are clamped together. Bolted joints avoid the thermal effects associated with welding and are usually easier to disassemble for maintenance, replacement, inspection, or repair. They can also simplify some production and field-assembly operations. Their limitations include the need for holes, added fastener weight and part count, tool access, controlled tightening, and suitable joint geometry. Poor preload or joint design can allow loosening, slip, separation, or fatigue problems under service loading.

From a manufacturing perspective, I would not select either process from strength alone. I would consider material compatibility, joint geometry, load path, environmental exposure, required tolerances, distortion sensitivity, access for tooling and inspection, expected production volume, cycle time, scrap risk, maintenance requirements, and total cost. For production, I would also make sure the selected process is repeatable and inspectable. Critical weld characteristics may require defined welding parameters and appropriate inspection, while critical bolted joints may require controlled torque or another validated preload method.

No calculation is necessary for this general comparison because the question does not provide joint dimensions, materials, loads, or acceptance criteria. Those details would be needed before making a design-specific recommendation.

• What materials are being joined, and are they suitable for the proposed welding process?
• Is the joint expected to be permanent, or must it be removed for maintenance or replacement?
• What types of loading does the joint experience, such as static, cyclic, vibration, or impact loading?
• Are distortion or tight dimensional tolerances important after joining?
• Is there enough access for welding equipment, inspection, fastener installation, and tightening tools?
• What production volume, cycle-time target, and inspection requirements apply?

I would start with the basic distinction: welding creates a metallurgical bond, while bolting creates a mechanical clamped joint. Then I would explain the main tradeoff. Welding can give a compact, continuous, permanent connection, but fusion welding introduces heat, possible distortion, residual stress, and weld-quality controls. Bolting avoids those thermal effects and supports easier assembly and service, but it adds holes, fasteners, access requirements, and preload control. I would finish by saying that the correct manufacturing choice depends on the materials, load path, geometry, tolerances, production rate, inspection strategy, serviceability, and cost rather than assuming one method is always better.

1. Identify the materials being joined and determine whether the proposed welding process is metallurgically and practically suitable.
2. Define the joint geometry, load path, service environment, and whether disassembly is required.
3. Compare welding effects such as heat input where applicable, distortion, residual stress, joint preparation, process access, and inspection with bolting effects such as holes, fastener count, preload, installation access, and possible loosening or slip.
4. Evaluate manufacturing considerations including tooling, fixtures, cycle time, operator or automation capability, inspection access, scrap risk, and production volume.
5. Compare maintenance and repair requirements, including whether components must be separated or replaced.
6. Select the process that best satisfies structural, manufacturing, inspection, serviceability, and cost requirements.
7. Validate the chosen process with appropriate production controls and inspection before release.

The tradeoff is mainly between a metallurgically joined connection and a removable mechanical connection. Welding can reduce separate hardware and create a compact connection, but fusion welding can add distortion, heat-related material effects, specialized equipment, and inspection effort. Bolting is usually easier to assemble and service and avoids welding heat, but it adds holes, fasteners, tightening operations, tool-access requirements, and preload control. Production volume also matters because fixtures, automation, cycle time, inspection, and scrap can make the lowest-cost choice different from the simplest prototype choice.

Common mistakes include saying that welding is always stronger than bolting, treating all welded or bolted joints as equivalent, ignoring heat-affected-zone and distortion effects when they apply to the welding process, ignoring preload and loosening in bolted joints, selecting a process without considering material compatibility, overlooking tool and inspection access, and comparing only initial fabrication cost while ignoring maintenance, repair, cycle time, scrap, and quality-control requirements.

Give the physical difference first: welding forms a metallurgical bond, while bolting forms a mechanical clamped joint. Then compare heat effects where applicable, permanence, inspection, assembly access, serviceability, production control, and cost. Avoid saying that one process is universally better; show that you would choose the joining method from the actual material, load, geometry, manufacturing, and maintenance requirements.

The exact graduate-school project details are not provided here, so I would not invent a specific experiment or result. In the interview, I would describe the real project by first explaining the engineering question I was testing, then the experimental setup, controlled and measured variables, instrumentation, and data-acquisition method. I would explain any problems I encountered, such as measurement noise, calibration issues, fixture effects, or inconsistent repeatability, only if those actually occurred. Then I would describe how I isolated the cause, changed the setup or procedure, repeated the test, and checked whether the final data were repeatable and consistent with the project objective.

A strong answer should show the interviewer how the experiments were planned, executed, corrected, and validated. Because the project-specific apparatus, measurements, and results were not supplied, those details should come from the candidate's actual graduate-school work rather than being invented.

• Would you like me to focus on one representative experiment or summarize the full test program?
• Are you most interested in the experimental setup, instrumentation, the problems I encountered, or how I validated the results?
• Would it be helpful if I explain how the experimental results compared with an analytical model or simulation, if that was part of the project?

I would organize the answer as an engineering test story.

First, I would state the purpose of the experiment in one sentence: what physical behavior, design question, or hypothesis the graduate-school project was trying to evaluate. I would then identify the input variables I intentionally changed, the quantities I measured, and the conditions I tried to hold constant. This establishes the boundary of the experiment and shows that the test had a defined objective rather than being an open-ended data-collection exercise.

Next, I would describe the physical setup using the actual project details. That includes the specimen or prototype, fixture, loading or operating condition, relevant environmental conditions, sensors, and data-acquisition system. For each important measurement, I would explain why the sensor type and measurement range were appropriate. If the experiment involved time-varying signals, I would also mention how I selected a sampling rate high enough to capture the physical behavior without aliasing.

Before relying on the data, I would explain how the measurement system was checked. Depending on what was actually done in the project, that could include sensor calibration, zeroing, a known reference condition, repeated measurements, or comparison with another measurement method. The important point is that the experiment should distinguish changes in the physical system from changes caused by the measurement system itself.

I would then describe the main problem encountered during testing. I would avoid saying only that the data 'looked wrong.' Instead, I would explain the observable symptom and how I investigated it. For example, if repeated tests disagreed, I would separate possible causes such as fixture variation, sensor placement, environmental changes, operator procedure, data-acquisition settings, or genuine variability in the test article. I would change one factor at a time where practical so that the effect of each change could be interpreted.

After identifying the cause, I would explain the corrective action actually used in the project. That might have been a change to the fixture, sensor mounting, calibration procedure, test sequence, operating condition, or data-processing method. I would then repeat the relevant experiment instead of assuming that the correction worked.

The final step is validation. I would explain how I determined that the corrected experiment produced credible evidence. I would look for repeatability under the same conditions and, where the project allowed it, reproducibility across different setups, specimens, operators, or test sessions. I would also discuss measurement uncertainty and whether the observed differences were large enough to distinguish a real physical effect from measurement variation.

If the project had a model, simulation, analytical prediction, or published reference, I would explain how the experimental results were compared with it and what level of agreement was reasonable. I would not claim that agreement alone proves the design is correct; instead, I would explain the remaining limitations and the service conditions that the experiment did or did not represent.

I would finish by connecting the experiments back to the project objective: what evidence the tests provided, what uncertainty remained, and what I would test next if more time or resources were available. This keeps the answer focused on engineering judgment rather than simply listing laboratory activities.

1. Define the engineering question or hypothesis being tested.
2. Trace each experiment to the project objective and define the evidence needed to judge the result.
3. Identify controlled variables, intentionally varied inputs, measured outputs, and operating conditions.
4. Select the actual sensors, measurement ranges, fixtures, and data-acquisition settings used in the project.
5. Verify calibration or reference checks before collecting decision-making data.
6. Run the baseline experiment and document the procedure so it can be repeated.
7. When a problem appears, describe the observable symptom and list plausible experimental and physical causes.
8. Isolate important variables by changing one factor at a time or using a structured design of experiments when appropriate.
9. Correct the setup or procedure based on evidence rather than intuition alone.
10. Repeat the experiment and check repeatability, measurement uncertainty, and consistency with the expected physical behavior.
11. Compare the validated results with the project requirement, analytical model, simulation, or other reference when one actually existed.
12. State the conclusion, remaining limitations, and the next experiment that would reduce the most important uncertainty.

The main tradeoff is between experimental realism, measurement quality, time, and cost. A more realistic test can represent service conditions better, but it may introduce more uncontrolled variables. A highly controlled laboratory test makes cause and effect easier to understand, but it may represent the real system less completely. Higher sampling rates and more sensors can provide more information, but they also increase data volume and do not compensate for poor sensor selection or calibration. Repeating tests improves confidence in repeatability, but additional runs require time and test resources. The goal is therefore not to collect the maximum amount of data; it is to collect enough reliable data to answer the engineering question with known limitations.

Common mistakes are giving a long description of the graduate project without clearly stating what each experiment was intended to prove; listing equipment without explaining why it was selected; presenting a single measurement as conclusive without discussing repeatability or uncertainty; saying that the data were noisy without explaining how the source was isolated; changing several parts of the setup at once and then being unable to identify which change solved the problem; claiming validation when the test did not represent the required operating conditions; and inventing numerical results or experimental details that cannot be supported by the actual project.

Use one representative experiment as the backbone of the answer. Explain the objective, setup, measurements, problem, investigation, correction, repeated test, and final validation in that order. Include real numbers, instruments, conditions, and results only when they come from your actual graduate-school project. The strongest part of the answer is usually not that the first test worked perfectly, but that you recognized a limitation, isolated its cause systematically, corrected it, and verified the improvement.

My approach to system analysis and fault assessment is evidence-driven. I start by preserving the failed condition, defining the system boundary, and understanding the actual operating history. I separate the observed symptom from the failure mode, physical mechanism, and root cause. Then I compare expected behavior with measurements and inspection evidence, develop competing hypotheses, and use tools such as fault trees, Five Whys, or FMEA where appropriate. I avoid replacing components until the evidence supports the cause. After corrective action, I verify the fix under representative conditions and identify controls or monitoring that can prevent recurrence.

I treat system analysis and fault assessment as a structured process for moving from an observed symptom to a defensible root cause. The important distinction is that a symptom, a failure mode, a physical failure mechanism, and the root cause are not the same thing. For example, excessive vibration may be the symptom, bearing degradation may be the failure mode, fatigue or lubrication breakdown may be the mechanism, and the root cause could be misalignment, imbalance, contamination, incorrect loading, or another operating condition. I would not assume which one is responsible without evidence.

• What system or subsystem is being evaluated?
• What was the observed symptom, and when did it occur?
• Did the condition appear suddenly or gradually?
• What were the actual loads, speeds, temperatures, pressures, duty cycle, environment, and maintenance history?
• Are failed parts still available for inspection?
• What measurements, drawings, specifications, inspection records, or previous fault data are available?
• Was there any recent maintenance, configuration change, installation work, or operating change before the problem appeared?
• What would constitute a successful verification test after corrective action?

My first step is to establish safe conditions and preserve evidence. I avoid disturbing fracture surfaces, wear patterns, deposits, damaged seals, fastener positions, lubricant condition, or other evidence until it has been documented. I define the physical boundary of the system so that I know which components, interfaces, loads, and operating inputs are included in the assessment.

Next, I establish the expected operating condition. I review the applicable design information, operating limits, drawings, service history, and available measurements. I then compare those expectations with what actually occurred. The goal is to identify the gap between expected and observed behavior without assuming the cause.

I then separate the problem into four levels. The symptom is what was observed, such as vibration, overheating, leakage, noise, reduced performance, or unexpected motion. The failure mode describes how a component or function failed, such as bearing damage, seal leakage, deformation, fracture, excessive wear, or loss of alignment. The failure mechanism explains the physical process, such as fatigue cracking, corrosion, abrasion, overheating, inadequate lubrication, or overload. The root cause explains why that mechanism developed under the actual system conditions.

After that, I build competing hypotheses. For a vibration problem, for example, possible causes might include imbalance, misalignment, looseness, bearing degradation, structural resonance, or an external excitation source. I identify what evidence should be present if each hypothesis is true. That creates a testable diagnostic path instead of a guess.

The next step is measurement and inspection. The exact tools depend on the system, so I would not claim a specific test without context. Typical evidence could include dimensional inspection, alignment measurements, vibration data, temperature measurements, wear patterns, lubricant condition, fracture-surface observations, fastener condition, pressure or flow data, or comparison with an undamaged reference component. I keep units and measurement conditions consistent so that the comparison is meaningful.

I may organize the reasoning with a fault tree when several paths could produce the same top-level failure. Five Whys can help trace a verified failure mechanism back through process or operating causes, but I would not use it as a substitute for physical evidence. FMEA is useful for checking whether the identified failure mode is part of a broader risk pattern and whether other consequences or controls should be considered. A fishbone analysis can also help make sure categories such as machine, material, method, environment, measurement, and human factors are not overlooked.

As evidence accumulates, I eliminate hypotheses that do not match the observations. For example, if a proposed cause predicts a specific wear pattern, vibration signature, or other measurable response and that evidence is absent, its likelihood should decrease. I continue until the remaining explanation is consistent with the observed failure, operating history, and physical mechanism.

Once the root cause is sufficiently supported, I define corrective action at the appropriate level. Replacing the failed component alone may restore function but may not remove the cause. If the evidence points to misalignment, contamination, inadequate lubrication, an unsuitable operating condition, an installation problem, or another systemic factor, the corrective action should address that factor as well as the damaged part.

Verification is essential. I repeat the relevant measurement or functional test under representative conditions and compare the result with the expected behavior or acceptance criteria. If the original symptom was vibration, for example, the verification should include a repeatable vibration check rather than relying only on the fact that the machine runs. I also document assumptions, remaining uncertainty, and any monitoring needed to confirm that the failure does not recur.

The main limitation in any fault assessment is evidence quality. Missing service history, disturbed failed parts, incomplete measurements, or uncertain operating conditions can make the root cause less certain. In that case, I state the uncertainty clearly and identify what additional evidence would change or strengthen the conclusion.

Overall, my goal is to move from symptom to failure mode, from failure mode to physical mechanism, and from mechanism to root cause using measurements and testable evidence. Then I verify that the corrective action removes the problem rather than simply masking it.

1. Establish safe conditions and preserve the failed state and physical evidence.
2. Define the system boundary, interfaces, operating conditions, and service history.
3. Record the observed symptom without assuming a cause.
4. Identify the possible failure mode and physical failure mechanisms.
5. Compare actual operation with design assumptions, specifications, and expected behavior.
6. Develop multiple competing root-cause hypotheses.
7. Define what measurement or inspection evidence would support or reject each hypothesis.
8. Collect and compare relevant measurements, inspection findings, and historical evidence.
9. Use structured methods such as a fault tree, Five Whys, FMEA, or fishbone analysis where they improve the reasoning.
10. Eliminate hypotheses that conflict with the evidence and identify the most strongly supported root cause.
11. Define corrective action that addresses both the failed component and the underlying cause.
12. Verify the corrective action with a repeatable test under representative conditions.
13. Document residual uncertainty, recurrence-prevention actions, and any ongoing monitoring.

The main tradeoff is between diagnostic speed and confidence. Replacing a suspected component quickly may restore operation, but it can destroy evidence or leave the underlying cause unresolved. A more structured investigation may require additional inspection or testing, but it provides stronger confidence that the corrective action addresses the actual failure mechanism. Another tradeoff is test depth: simple measurements are faster and less expensive, while more detailed inspection or instrumentation may be justified when the failure has high consequence, is intermittent, or has several plausible causes. The investigation should use enough evidence to support the decision without adding tests that do not materially reduce uncertainty.

Common mistakes include replacing the failed component before preserving evidence; treating the visible symptom as the root cause; jumping to one preferred hypothesis without considering alternatives; relying on assumptions instead of measurements; ignoring actual service history or operating conditions; confusing a failure mechanism such as fatigue with the reason the fatigue occurred; using Five Whys without validating each step physically; mixing measurement conditions or units; declaring the problem fixed because the equipment operates once; and failing to verify the corrective action under representative conditions.

Explain your reasoning as a sequence from symptom to failure mode to mechanism to root cause. Emphasize what evidence you would preserve, what measurements would distinguish competing hypotheses, and how you would verify the corrective action. If the interviewer has not supplied specific test results or system details, do not invent them. State what you would inspect or measure and why that evidence matters.

I would answer this with a real Air Force maintenance event rather than inventing details. I would briefly describe the difficult discrepancy, explain how I first established safe conditions and preserved the evidence, then show how I confirmed the symptom, reviewed the maintenance history, and used inspections and measurements to eliminate competing causes. After identifying the actual failure mechanism, I would explain the corrective action I performed under the applicable maintenance requirements and how I repeated the original operational check to verify the discrepancy was gone. The key lesson would be that good troubleshooting means proving the root cause and the repair, not just replacing a suspected part.

The source prompt does not provide the candidate's actual Air Force maintenance event, so the answer should not invent aircraft, components, measurements, failures, or results. The best response is to use a real event from the candidate's service and explain the troubleshooting logic clearly.

A strong story begins with the discrepancy and why it was difficult. An intermittent or repeat discrepancy is especially useful because it demonstrates diagnostic discipline: the equipment may appear normal during one check and fail during another, so replacing the first suspected component can hide the true cause.

The diagnostic path should start by establishing safe conditions and preserving the failed condition or available evidence before disturbing the system. Then review the original discrepancy, relevant maintenance history, recent work, and the operating conditions associated with the problem. This separates confirmed facts from assumptions.

Next, confirm or reproduce the symptom when authorized and practical. Compare expected operation with actual operation and identify the conditions under which the discrepancy appears. Depending on the real event, useful variables could include operating mode, load, temperature, vibration, sequence, or another condition documented during the failure. Do not add any variable that was not actually relevant to the candidate's event.

Then develop competing hypotheses rather than committing immediately to one suspected component. The candidate should explain the real failure possibilities that were considered and the inspections or measurements used to rule them in or out. Possible mechanical mechanisms in a real maintenance problem could include wear, misalignment, vibration, inadequate lubrication, overheating, contamination, corrosion, a damaged interface, or another mechanism supported by the actual evidence.

The explanation should keep four ideas separate. The symptom is what was observed. The failure mode is how the item failed to perform its required function. The failure mechanism is the physical process that produced the failure. The root cause is the underlying condition that allowed the failure to occur. A failed component can be the immediate failure mode without being the root cause.

Once the evidence supports a root cause, explain the authorized corrective action that was actually taken. Then describe how the repair was verified. The best verification is a repeat of the test or operating condition that originally exposed the discrepancy, performed under representative and permitted conditions. A single normal observation after maintenance is weaker evidence than successfully repeating the condition that previously produced the failure.

The conclusion should emphasize what made the event challenging and what professional judgment was demonstrated. A strong closing point is that the difficult part was not merely replacing or repairing hardware; it was preserving evidence, avoiding premature conclusions, isolating the real failure mechanism, and proving that the corrective action removed the original discrepancy.

• "Would you like me to focus more on the technical troubleshooting process or on how I coordinated the maintenance response?"
• "Would you like me to go deeper into how I isolated the root cause and verified the repair?"

Keep the story chronological. First, state the real discrepancy and why it was difficult. Second, explain how you established safe conditions and preserved useful evidence. Third, describe the competing causes you considered and the real inspections or measurements that ruled them in or out. Fourth, state the root cause and corrective action without adding unsupported technical details. Finally, explain how you repeated the relevant check and demonstrated that the original discrepancy was resolved. If specific equipment details are sensitive or unnecessary, describe the subsystem generically while preserving the true troubleshooting sequence.

1. Establish safe conditions and preserve the failed condition or available evidence before disturbing the system.
2. Define the reported symptom precisely and review the relevant maintenance history and operating conditions.
3. Separate confirmed facts, assumptions, and unknowns.
4. Reproduce or confirm the symptom when authorized and practical.
5. Compare expected operation with actual operation and identify the conditions associated with the discrepancy.
6. Separate the observed symptom, failure mode, possible failure mechanisms, and potential root causes.
7. Develop multiple competing hypotheses rather than assuming the first suspected component is responsible.
8. Prioritize inspections and measurements that can eliminate competing hypotheses while disturbing the evidence as little as possible.
9. Use the collected evidence to identify the most strongly supported failure mechanism and root cause.
10. Perform the authorized corrective action using the applicable maintenance requirements.
11. Repeat the original functional or operational check under representative conditions to verify that the discrepancy is removed.
12. Document the result and address recurrence prevention through the appropriate maintenance process when supported by the evidence.

The main tradeoff is between restoring equipment quickly and taking enough time to prove the real cause. Replacing a suspected component immediately may appear faster, but it can waste parts and leave an intermittent root cause in place. A disciplined investigation requires more effort because evidence must be preserved, several plausible causes may need to be considered, and measurements must be interpreted before corrective action is chosen. Verification also matters: a repair that passes one simple check may still fail under the conditions that originally produced the discrepancy. The objective is therefore not to perform the largest number of tests, but to use the most informative inspections and measurements needed to establish the cause and demonstrate that the repair works.

Common mistakes include inventing a maintenance story or technical details that were not supplied, jumping from the symptom directly to a suspected component, replacing parts without evidence, disturbing or discarding failed parts before preserving useful evidence, confusing a failed component with the root cause, listing maintenance actions without explaining the diagnostic reasoning, and claiming the problem was fixed without showing how the original discrepancy was retested. Another mistake in an interview is exposing sensitive or unnecessary equipment details when the same troubleshooting judgment can be explained at a suitable system level.

Use an actual Air Force maintenance event that you can defend in detail. Spend less time naming hardware and more time explaining your reasoning: what you observed, what possibilities you considered, what evidence ruled each possibility in or out, what established the root cause, what corrective action you actually took, and how you verified the repair. If equipment details are sensitive or unnecessary, describe the subsystem generically while keeping the real sequence and engineering logic unchanged.
