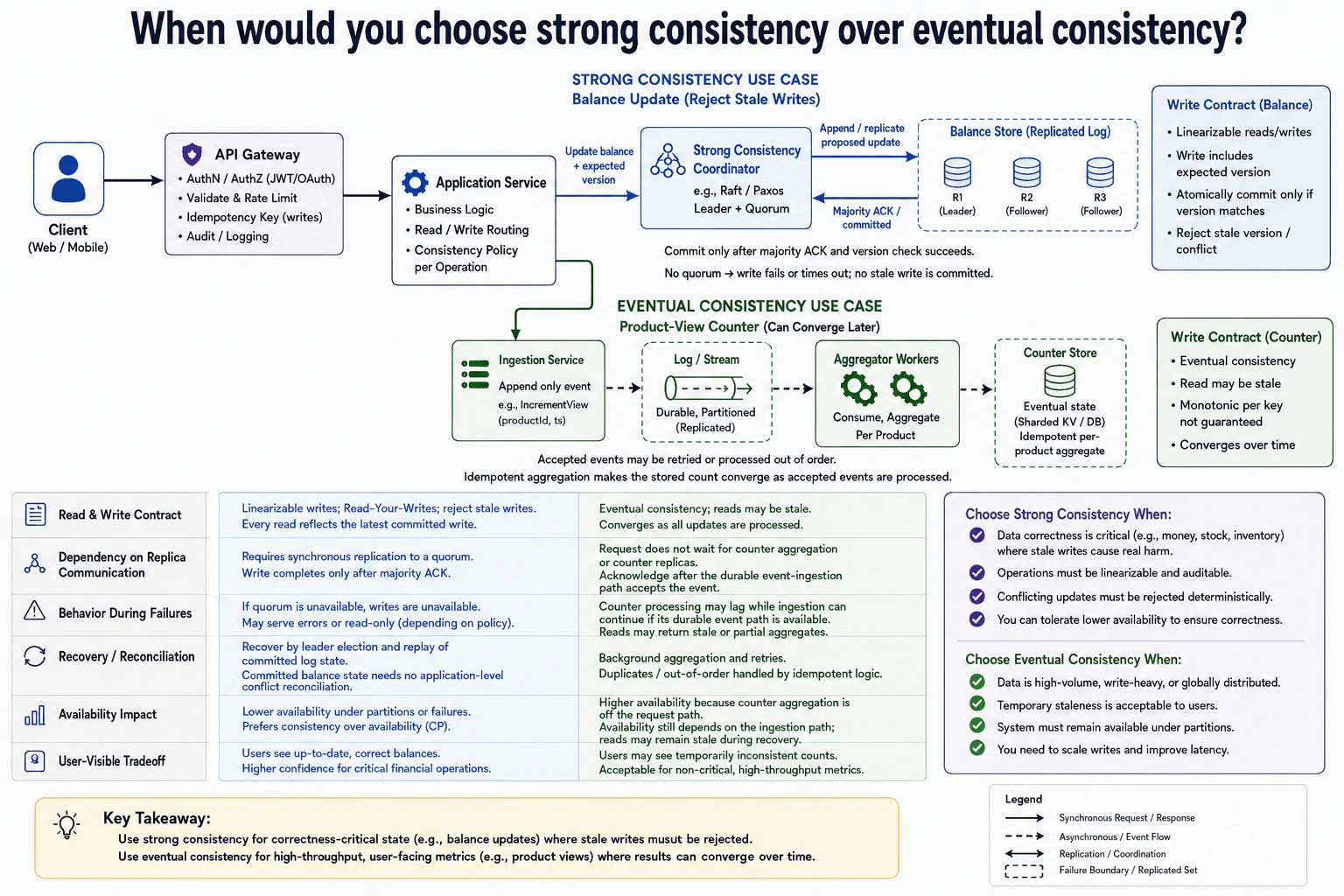

At a high level, I would choose strong consistency when stale data could cause a wrong result, such as updating an account balance. The main challenge is choosing between correctness and availability. I would explain two flows. Balance updates use an expected version, a leader, and a quorum before commit. Product-view events enter a durable stream and are counted later by workers. Strong consistency may reject writes during failures. Eventual consistency keeps the counter path more available, but users may temporarily see an older count.

The system handles two kinds of data with very different needs. A balance update must not silently overwrite a newer balance. A product-view count can be a little behind because an exact count is less critical. The diagram separates these needs into two paths. The balance path checks an expected version and commits through a replicated log. The product-view path accepts an event into a durable stream, then workers update the count in the background. This lets each workload choose the right balance between correctness and availability.

1. Must every balance read return the latest committed value?
2. Should a stale balance update return a conflict to the caller?
3. How much delay is acceptable for product-view counts?
4. During a failure, should balance writes fail rather than risk incorrect data?

I would say that consistency should be chosen for each kind of operation. The API Gateway handles authentication, authorization, validation, rate limiting, write idempotency, and audit logging. The Application Service then applies the consistency policy for the operation. For money, correctness is more important than accepting every write. For product views, temporary stale data is acceptable, so background processing is a better fit.

For a balance update, the Application Service sends an update with its expected version to the Strong Consistency Coordinator. The coordinator uses a leader and quorum, as shown by the Raft or Paxos example. It sends the proposed update to the Balance Store replicated log. The update commits only after the version check succeeds and a majority acknowledges it. If the expected version is stale, the update is rejected instead of overwriting newer data. Reads are linearizable, which means they reflect the latest committed balance.

If the coordinator cannot reach a quorum, the balance write fails or times out. This gives lower write availability during some failures, but it prevents an unsafe write from being committed. The Balance Store keeps the committed replicated log. After a leader failure, the system can choose a new leader and replay committed log state. The application does not need to merge conflicting committed balances because stale conflicting writes were rejected before commit.

For a product view, the Application Service sends work to the Ingestion Service. It appends an IncrementView event containing the product ID and timestamp. The event enters the durable, partitioned, replicated Log / Stream. Aggregator Workers consume accepted events and combine them per product. They update the Counter Store, which is a sharded key-value store or database in the diagram. The aggregate uses idempotent logic, which means retries do not incorrectly apply the same accepted work more than intended.

The request does not wait for counter aggregation or counter replicas. It can be acknowledged after the durable event-ingestion path accepts the event. During failures, counter processing may lag while ingestion can continue when that durable path remains available. Reads may show stale or partial counts, and monotonic reads are not guaranteed. Workers can retry accepted events and process them even when they arrive out of order. As that work completes, the stored count converges. The trade-off is clear: strong consistency protects critical balances, while eventual consistency gives the counter path higher availability and lets background work catch up later.

The benefit of strong consistency is that users see the latest committed balance and stale updates are rejected. This matters for money because an old write could cause real harm. The downside is lower availability. If a majority of replicas cannot communicate, a balance write may fail or time out. The product-view path makes a different choice. It can acknowledge a request after the durable event path accepts it, without waiting for the final count. This gives higher availability and keeps aggregation out of the request path. The downside is that users may temporarily see an older or partial count while workers catch up.

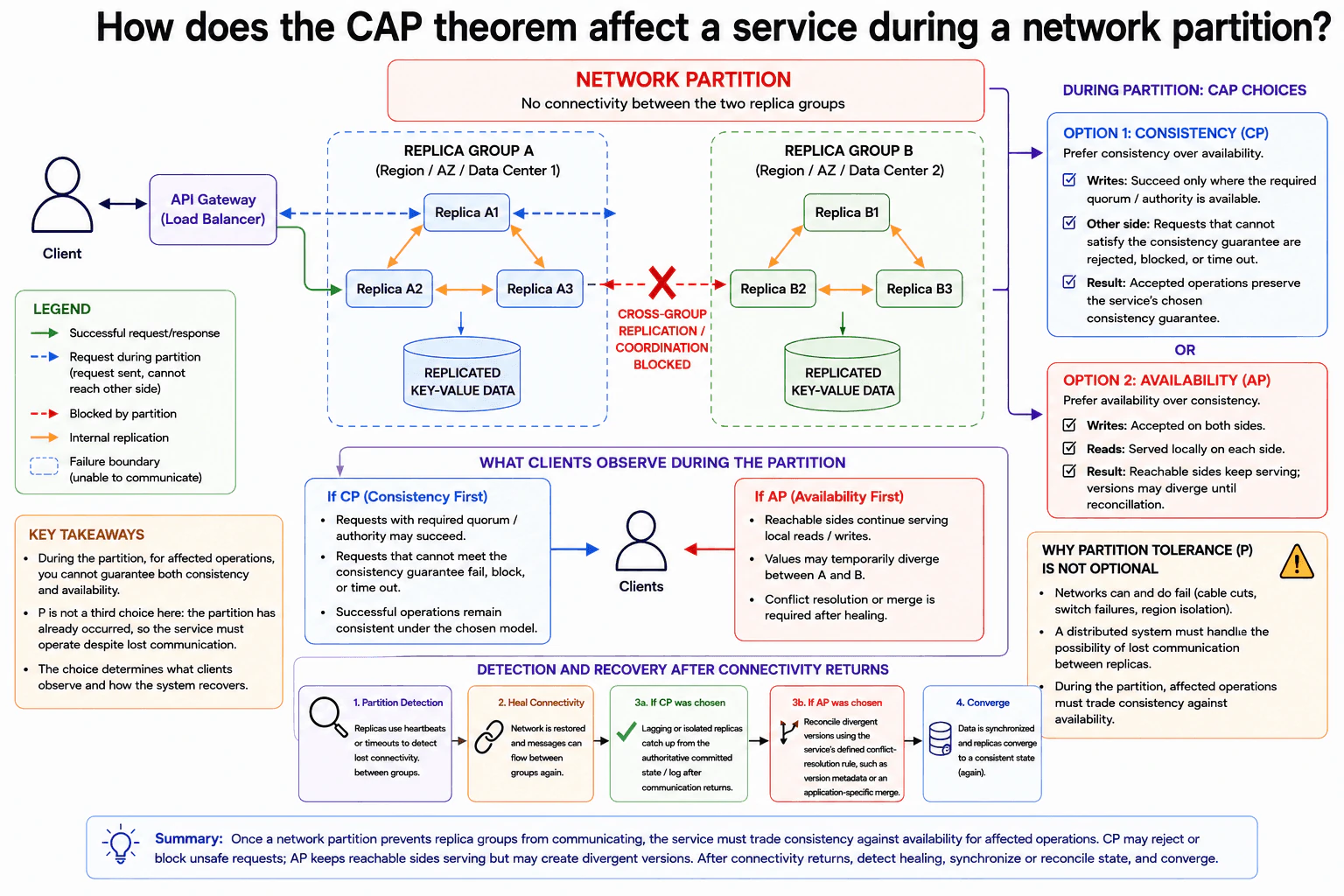

At a high level, the service keeps the same key-value data in two replica groups. The hard part starts when those groups cannot communicate. I would explain what the partition does, then the CP and AP choices, and finally recovery. With CP, some requests may fail or wait to protect consistency. With AP, reachable sides keep serving, but their data may differ. When connectivity returns, replicas synchronize or resolve differences and converge again.

The service keeps the same key-value data in Replica Group A and Replica Group B. Normally, the groups can communicate and keep their copies aligned. The difficult case starts when the network path between them fails. Each group may still be reachable, but the groups cannot coordinate with each other. The service must decide what matters more for affected requests: protecting its consistency guarantee or continuing to answer from reachable sides. The diagram organizes the answer into the partition behavior, what clients observe, and the detection and recovery steps.

1. What consistency guarantee must reads and writes protect?
2. During a partition, should affected requests fail rather than risk different values?
3. If both sides accept writes, what rule should resolve conflicting versions later?

I would start by saying that partition tolerance is not a third optional choice here. The partition has already happened, so the system must handle lost communication between replicas.

The Client sends requests through the API Gateway, which also acts as the Load Balancer. Replica Group A and Replica Group B contain copies of the same replicated key-value data. During the partition, cross-group replication and coordination are blocked. The groups cannot exchange updates across the failed network path.

For CP, I would say that protecting the chosen consistency guarantee matters more than answering every request. Writes succeed only where the required quorum or authority is available.

A quorum means enough replicas agree to safely complete an operation. Requests that cannot meet the consistency rule are rejected, blocked, or time out. Clients may therefore see failures even when part of the service is still reachable.

For AP, I would say that keeping reachable sides serving matters more during the partition. Both sides may continue local reads and writes.

This gives clients better availability, but the copies may temporarily diverge. Diverge means Replica Group A and Replica Group B may hold different values for the same key. The service must resolve those differences after communication returns.

With CP, requests with the required quorum or authority may succeed. Other requests may fail, block, or time out. Successful operations still follow the service's chosen consistency rule.

With AP, reachable sides continue serving local requests. Clients talking to different sides may temporarily see different values. The service accepts that risk so more requests can continue during the partition.

The system can detect the partition when replica heartbeats or messages stop arriving and time out. After the network path is restored, messages can flow between the groups again.

If CP was used, lagging or isolated replicas catch up from the committed state or log. If AP was used, the system compares divergent versions and applies its defined conflict-resolution rule, such as version metadata or an application-specific merge. Finally, the replicas synchronize and converge to a consistent state again.

The benefit of CP is safer data behavior during the partition. The downside is that some requests may fail, wait, or time out. The benefit of AP is that reachable sides can keep serving clients. The downside is that the two replica groups may temporarily store different values. That creates extra recovery work when communication returns. The system must compare those versions and apply its conflict rule. Partition tolerance is not another choice in this failure because the network has already split. The real decision is how affected requests behave while the groups cannot communicate.

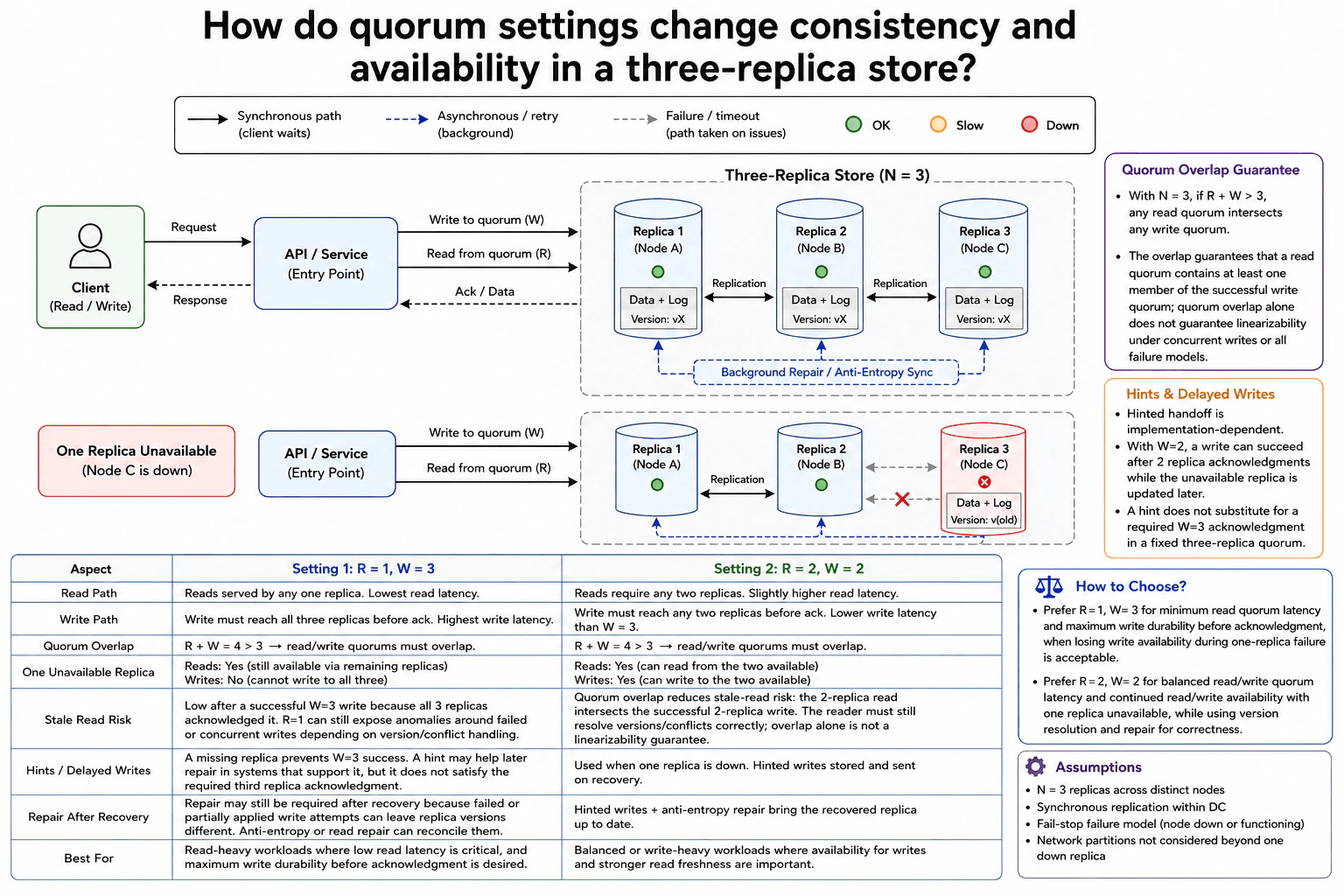

At a high level, this is about choosing where we spend the waiting time in a three-replica store. The main challenge is balancing fresh reads, response latency, and availability during a replica failure. I would compare the write path, the read path, and the recovery path. With R=1, W=3, reads wait for one replica but writes need all three. With R=2, W=2, both operations need two replicas, so one unavailable replica can still be tolerated.

The store keeps three copies of the same data. We must decide how many copies must answer a read and how many must confirm a write. The difficult part is that waiting for more copies changes both response time and availability when one copy is down. The diagram compares two choices. First, we will follow their normal read and write paths. Then we will see what happens when one replica fails. Finally, we will look at delayed updates, repair after recovery, and the kind of workload that fits each choice.

1. Is the lowest possible read latency more important than write availability?
2. Must writes continue when one replica is unavailable?
3. How should the reader resolve different versions returned by replicas?
4. Does the store support hinted handoff and background anti-entropy repair?

I would first explain that N=3 means the store has three replicas. R is the number of replica responses required for a read. W is the number of replica acknowledgments required for a successful write.

Both settings have R + W = 4, which is greater than N=3. Therefore, every read quorum must overlap every successful write quorum. A read quorum contains at least one member of the successful write quorum. This overlap alone does not guarantee linearizability during every concurrent-write or failure case.

For this setting, a read can return after one replica answers. This gives the lowest read quorum latency because the service does not wait for another replica.

A write is different. The service sends the write to the three-replica store and waits for all three acknowledgments. The client cannot receive write success if one replica is unavailable. This also gives the highest write latency of these two choices because every replica must acknowledge.

After a successful W=3 write, all three replicas acknowledged that write. A later R=1 read therefore has low stale-read risk for that completed write. Failed or concurrent writes can still require correct version and conflict handling.

With R=2, the service reads from two replicas and waits for two responses. The reader should compare versions and choose the correct value when those responses differ. This makes reads slightly slower than R=1.

For writes, the service only needs acknowledgments from two replicas. It can therefore finish without waiting for a third replica. Because 2 + 2 is greater than 3, the successful write quorum and every read quorum must overlap.

If Replica 3 is down, R=1, W=3 can still serve reads using Replica 1 or Replica 2. Writes cannot succeed because W=3 requires acknowledgments from all three replicas.

With R=2, W=2, both operations can continue. The service can read from the two available replicas and can complete a write after those two acknowledge it. This is the main availability advantage of the balanced quorum.

The diagram shows hinted handoff as implementation-dependent. With W=2, a write can succeed after two acknowledgments while the unavailable replica receives the missed update later. A hint does not replace the missing third acknowledgment when W=3 is required.

When a replica returns, Background Repair / Anti-Entropy Sync can bring its data up to date. Repair may also be needed after failed or partially applied write attempts. The main trade-off is simple. R=1, W=3 favors minimum read quorum latency and requires every replica before write success. R=2, W=2 gives more balanced latency and keeps reads and writes available when one replica is unavailable.

The benefit of R=1, W=3 is very fast reads. A read waits for only one replica. A successful write also means all three replicas acknowledged that write. The downside is that writes stop if one replica is unavailable, and every write waits for all three acknowledgments. With R=2, W=2, the system can still read and write when one replica is down. Writes wait for only two acknowledgments. The downside is that reads must wait for two replicas and may need version comparison. Background repair is also important when a replica misses an update.

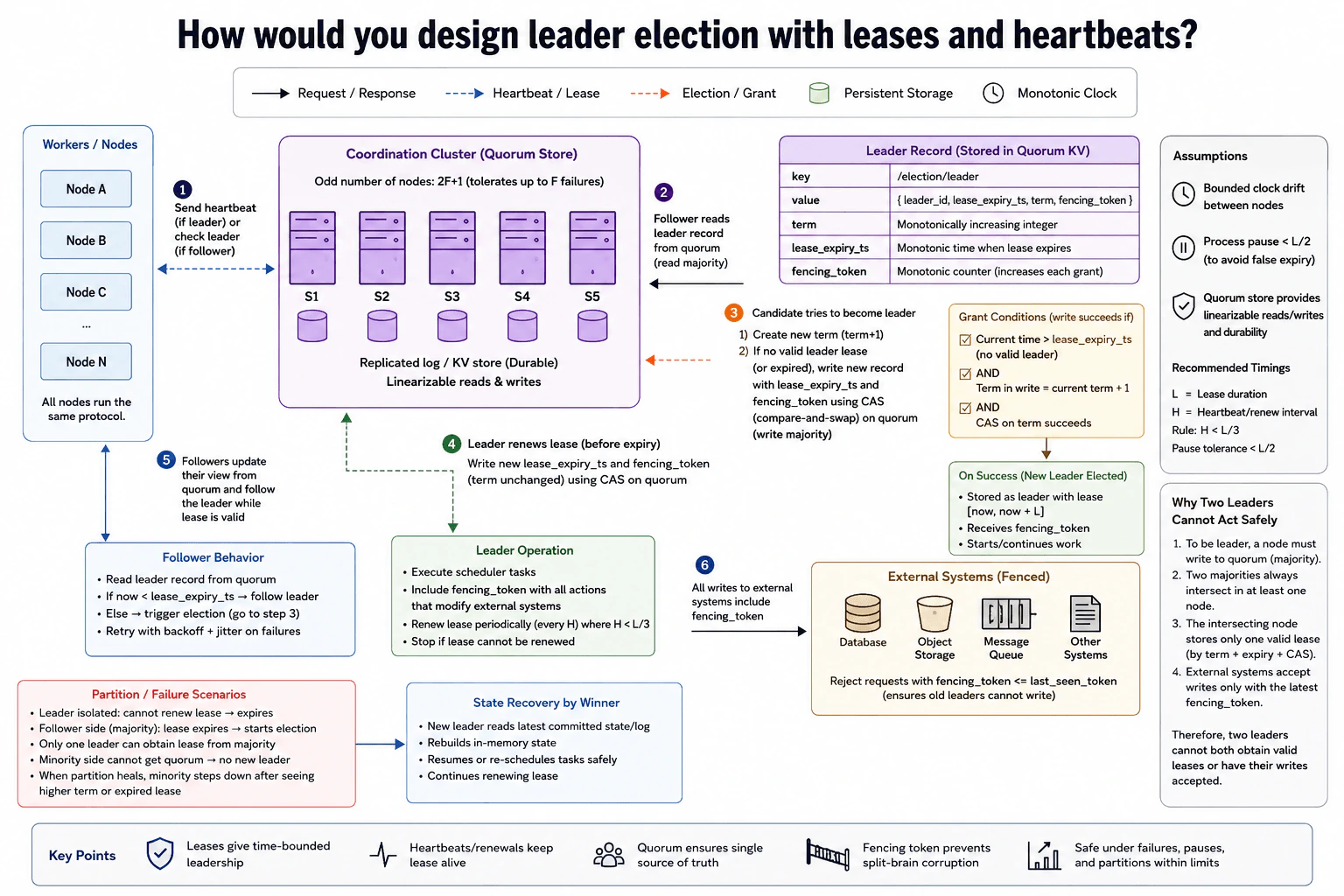

At a high level, the goal is to keep one scheduler safely active across several nodes. The hard part is handling crashes, long pauses, and network partitions without letting an expired leader keep changing external systems. I would explain three flows: reading the current leader, electing or renewing through the Coordination Cluster, and fencing every external write. A quorum gives one leadership decision, while fencing tokens block stale leaders. The main trade-off is choosing safety over availability when a majority is unreachable.

The system has several Workers / Nodes, but only one should run scheduler work as leader. The difficult case happens when a leader crashes, pauses, or loses network access. Another node may then become leader while the old node still believes it can work. The design prevents unsafe double leadership with a time-limited lease, a quorum decision, an increasing term, and a fencing token. I would explain the normal follower path, the election and renewal path, how external writes are fenced, and how the winner recovers after a failure.

1. How quickly should a new leader take over after the current leader fails?
2. What bounds can we assume for clock drift and process pauses?
3. Can every external system check and reject an old fencing token?

I would use the Coordination Cluster (Quorum Store) as the shared place for leadership state. It uses a replicated log or KV store and provides linearizable reads and writes, meaning nodes see one ordered history of updates.

The Leader Record stores the leader ID, term, lease expiry time, and fencing token. Followers read this record from quorum. If the lease is still valid, they follow that leader. If it is expired, they can move toward an election.

When no valid leader exists, a candidate tries to write a new Leader Record. It increases the term and creates a new lease expiry time. It also receives a newer fencing token.

The write uses CAS, or compare-and-swap. This means the write succeeds only if the expected current state still matches. The election requires a write majority. Two majorities must overlap, which keeps the quorum store on one ordered leadership history.

After winning, the leader periodically renews its lease before expiry. The renewal changes the lease expiry time but keeps the same term and fencing token. It also uses CAS on quorum.

The diagram calls the lease duration L and the heartbeat interval H. It uses H < L/3. It also assumes bounded clock drift and process pauses shorter than L/2. If the leader cannot renew safely, it stops acting.

The Leader Operation runs scheduler tasks and includes the fencing token with every action that can modify an External System. Examples in the diagram are a database, object storage, a message queue, and other systems.

Each fenced destination accepts only a token newer than the last token it has already accepted. A stale or expired leader therefore cannot safely write after a newer leader has started using a higher token.

If the leader becomes isolated from quorum, it cannot renew its lease. Its lease expires and it must stop. A minority partition cannot create a new leader because it cannot obtain quorum. The majority side can elect a new leader after the previous lease is no longer valid.

The winner reads the latest committed state or log, rebuilds its in-memory state, and resumes or reschedules work. When the partition heals, the minority observes the newer term or expired lease and steps down. The design therefore chooses safe scheduling over continued availability without quorum.

The benefit is that two schedulers cannot safely keep changing external systems at the same time. Quorum gives the nodes one ordered leadership record. Fencing tokens add another safety check by rejecting work from an old leader. The downside is lower availability during some failures. If a node cannot reach a majority, it cannot safely renew or become leader. A longer lease creates fewer renewals, but takeover is slower. A shorter lease allows faster takeover, but creates more renewal work. The timing also depends on bounded clock drift and limited process pauses. The Coordination Cluster is therefore required for correctness.

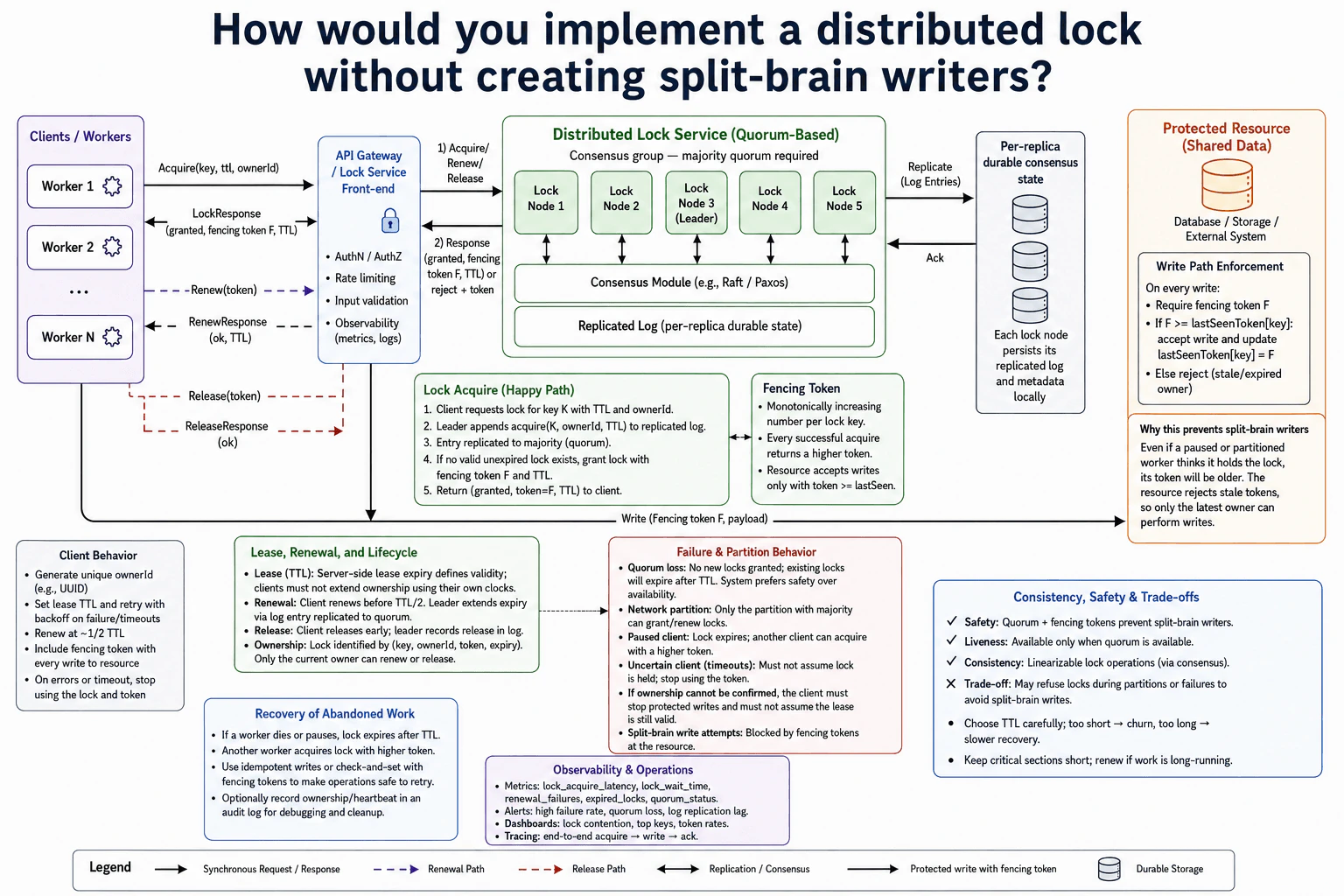

At a high level, I want only one worker to safely update a shared resource. The hard part is handling pauses, crashes, timeouts, and network partitions without letting an old owner write later. I would explain three flows: acquiring and renewing the lease, writing with a fencing token, and handling failures. A quorum-based lock service decides ownership. The Protected Resource rejects stale tokens. The trade-off is lower availability when the system cannot safely confirm ownership.

The system must let many workers compete for one shared resource without allowing two valid writers at the same time. The difficult case happens when a worker gets the lock and then pauses. Its lease may expire while it is paused. Another worker can then get a newer lock. When the old worker wakes up, it must not be allowed to write. The diagram solves this with server-controlled leases, majority quorum agreement, increasing fencing tokens, and checks at the Protected Resource.

1. How long can one protected operation normally take?
2. Can the Protected Resource store and compare a fencing token on every write?
3. Should writes stop whenever lock ownership cannot be confirmed?

I would make lock ownership explicit instead of treating the lock as a simple flag. A lock is identified by its key, ownerId, fencing token, and expiry.

The client sends Acquire(key, TTL, ownerId) through the API Gateway / Lock Service Front-end. The front-end handles authentication, authorization, rate limiting, input validation, metrics, and logs. The lease expiry is controlled by the server side. A client must not extend ownership using its own clock.

The Distributed Lock Service uses a leader, other lock nodes, a Consensus Module, and a Replicated Log. Consensus means a majority must accept the lock change before the service treats it as committed.

The leader appends the acquire record to the replicated log. The entry is copied to a majority quorum. Each lock node stores its replicated log and metadata in per-replica durable consensus state.

If no valid unexpired lock exists, the service grants ownership. It returns the fencing token and TTL to the worker. Every successful acquire for that key receives a higher fencing token.

The fencing token is the main protection against a paused old worker. It is a number that increases when a new lock is granted.

The worker sends its application write directly to the Protected Resource with fencing token F and the payload. The resource compares F with lastSeenToken[key]. If F is at least the accepted token, it accepts the write and stores F as the latest token. An older token is rejected as a stale writer.

This check must happen at the Protected Resource. The lock service cannot stop an already paused process from waking up later and trying to write.

For long work, the client renews before expiry. The leader extends the expiry through a log entry replicated to quorum. Only the current owner can renew or release the lock.

Release provides early cleanup, but lease expiry is the final recovery mechanism. If a worker crashes or pauses, the lease eventually expires. Another worker can then acquire the lock with a higher fencing token.

Retries use backoff. Protected operations should also be safe to retry, such as with idempotent writes or check-and-set using the fencing token.

If quorum is lost, the system grants no new locks. During a network partition, only the side with a majority can grant or renew locks.

If a client times out, it must not assume the lock is still held. If ownership cannot be confirmed, the client stops protected writes and stops using the token. Split-brain attempts are still blocked because the Protected Resource rejects older fencing tokens.

Operations watch lock latency, wait time, renewal failures, expired locks, quorum loss, and log replication lag. The main trade-off is availability. The system may refuse lock operations during uncertain states because preventing split-brain writers is more important than accepting unsafe ownership.

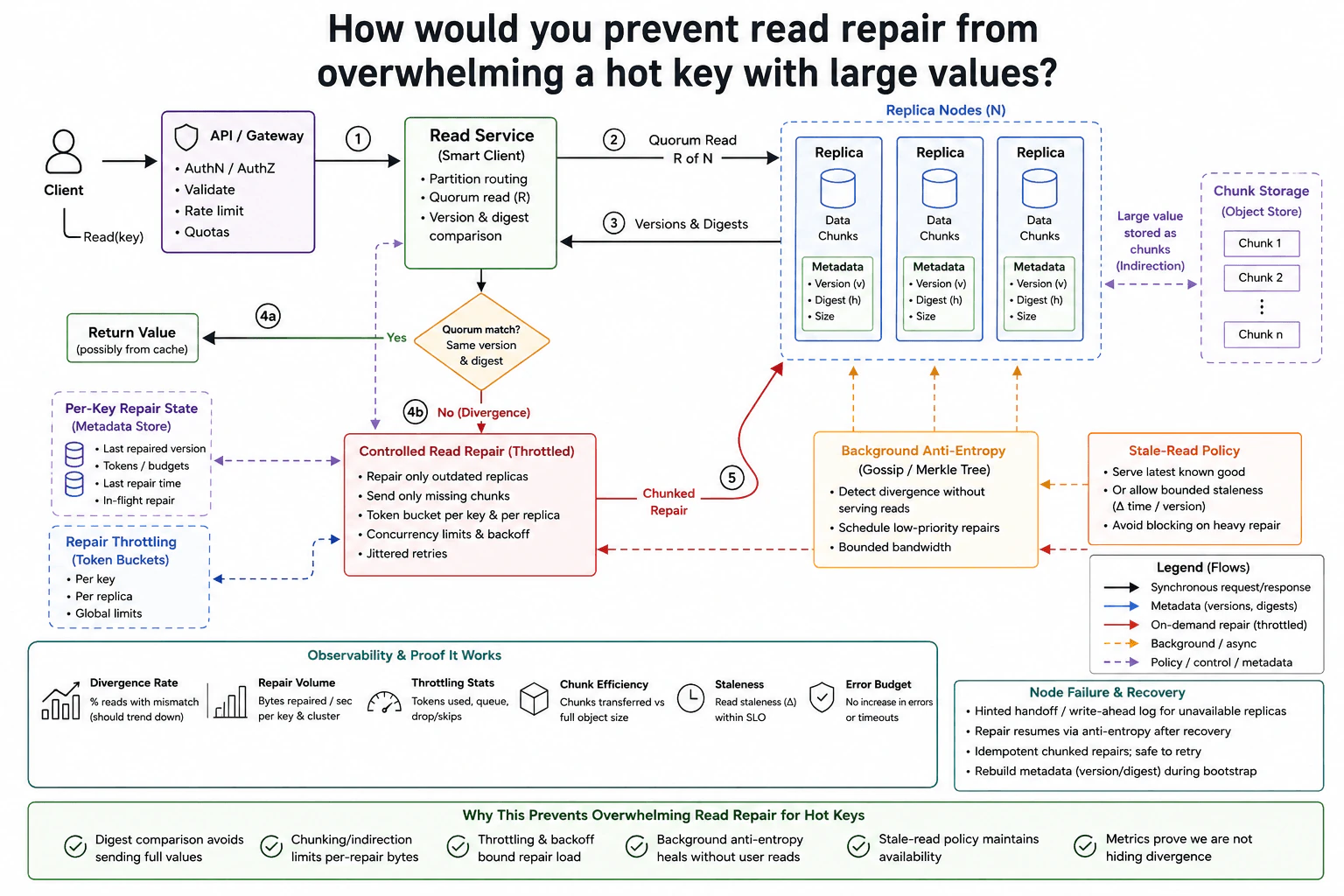

At a high level, I would keep normal reads fast and stop one hot key from causing repeated large repairs. The design has three main flows: compare small version and digest metadata, repair only missing chunks under strict limits, and move most cleanup to Background Anti-Entropy. A Stale-Read Policy can avoid blocking users on heavy repair. The trade-off is that replicas may disagree for a bounded time, so metrics must prove that divergence keeps shrinking.

The system must return a frequently requested large value without turning every read into a large network transfer. The hard part is that Replica Nodes can disagree, so old copies still need repair. The design first compares small metadata instead of copying the full value. It then limits any repair started by a read and moves continuing cleanup into the background. Large values are handled as chunks. A Stale-Read Policy protects the read path, while metrics prove that unfinished divergence is not being hidden.

1. How much stale data can a reader accept for this hot key?
2. Can the large value be stored and repaired as independent chunks?
3. How quickly must replica differences disappear after a node recovers?
4. What repair bandwidth can each key and replica safely consume?

I would start by keeping unnecessary work away from the hot key. The Client sends Read(key) through the API / Gateway. The gateway applies authentication, authorization, validation, rate limits, and quotas. The request then reaches the Read Service, which handles partition routing and the quorum read.

The Read Service sends a Quorum Read to R of N Replica Nodes. The contacted replicas return version and digest metadata. A digest is a small fingerprint of the stored value. The metadata also carries the value size. If the quorum has the same version and digest, the service follows the normal return path and does not start repair. The diagram allows the returned value to come possibly from cache.

If the versions or digests disagree, the request enters Controlled Read Repair (Throttled). This path targets only outdated replicas and sends only missing chunks when possible. Chunk Storage holds the large value as chunks through indirection, so repair does not need to resend the full object every time.

Repair Throttling uses token buckets per key and per replica, plus global limits. Controlled Read Repair also uses concurrency limits, backoff, and jittered retries. Per-Key Repair State records the last repaired version, tokens or budgets, the last repair time, and in-flight repair work. This stops one hot key from creating unlimited repair traffic.

I would not make user reads responsible for fully repairing the cluster. Background Anti-Entropy uses Gossip or a Merkle Tree to detect divergence without serving reads. It schedules low-priority repairs and keeps bandwidth bounded. This lets the foreground read path stay responsive while replicas continue moving toward the same state.

The Stale-Read Policy can serve the latest known good value or allow bounded staleness. This avoids blocking a read on a heavy repair. For Node Failure & Recovery, hinted handoff or a write-ahead log covers unavailable replicas. After recovery, anti-entropy resumes repair. Chunked repairs are safe to retry, and metadata is rebuilt during bootstrap.

Finally, Observability & Proof It Works must show the real result. I would track divergence rate, repair volume, throttling statistics, chunk efficiency, staleness within the SLO, and the error budget. Falling mismatch rates and controlled repair bytes show that throttling is protecting reads without simply hiding divergence.

The benefit is that normal reads move much less data. Small version and digest checks tell us whether repair is needed before copying a large value. Chunking also lets us send only missing pieces. The downside is that throttling repair can leave replicas different for a short time. Allowing bounded stale reads can extend that window. Background Anti-Entropy closes the gap without making every hot read do repair work, but it also needs bandwidth limits. We accept this because the service stays responsive while repair remains controlled. Divergence, staleness, repair volume, throttling, and errors must show that repair debt is not growing forever.

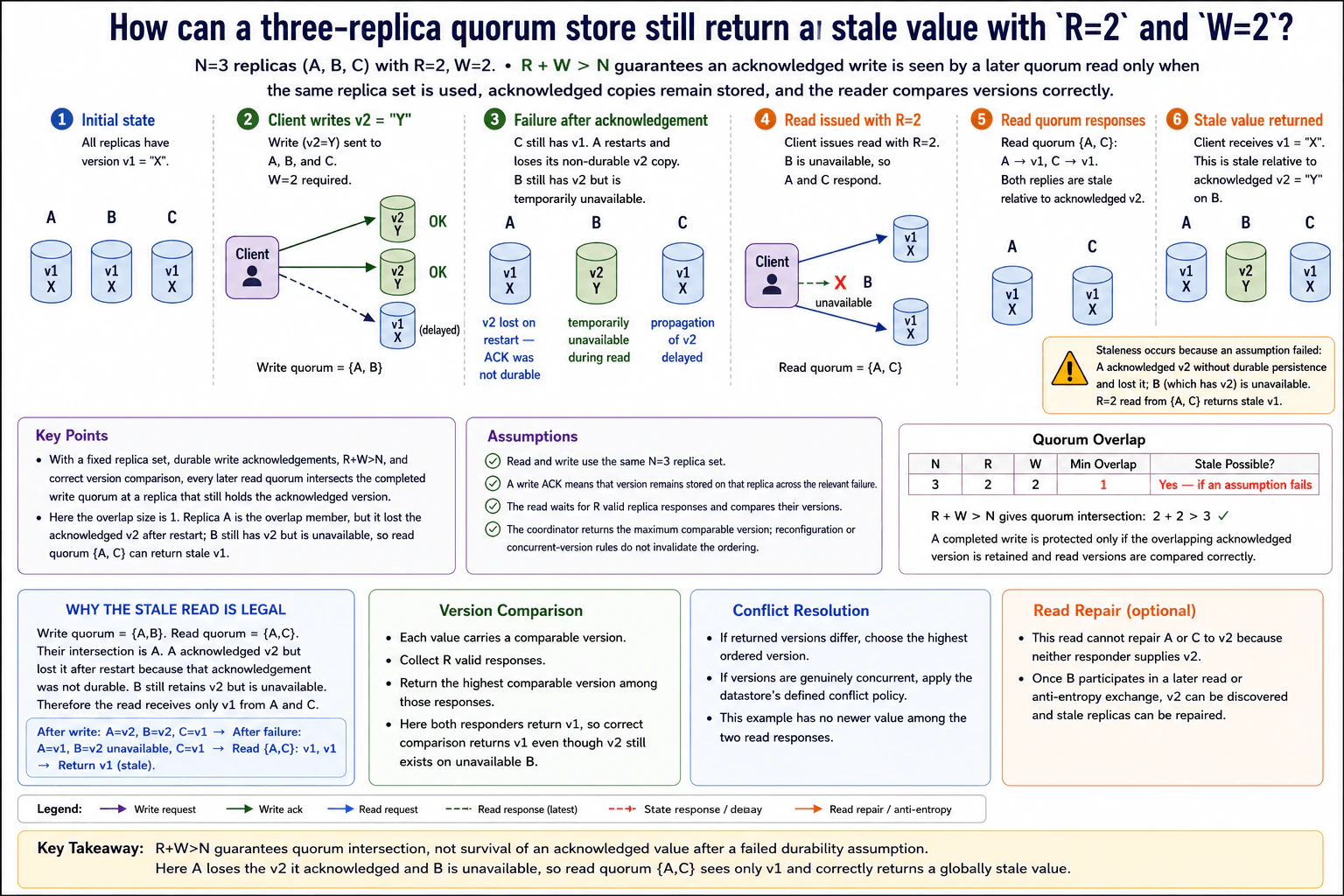

At a high level, this question is about why quorum math needs some extra assumptions. The main challenge is that a completed write can still become invisible if an acknowledged copy is later lost. I would explain the write, the failure, and the read. A and B acknowledge v2 while C has v1. A then loses v2, and B becomes unavailable. An R=2 read from A and C sees only v1, so it legally returns stale data.

The system keeps three copies of one value. A new value is accepted after two replicas say they stored it. A later read also waits for two replicas. Normally, these two groups must overlap, so the read should find the completed write. The difficult case happens when the replica in that overlap loses the value it already acknowledged. The diagram shows that exact failure. We can explain it in five steps: the quorum rule, the successful write, the failure, the stale read, and the recovery behavior.

1. Does a write acknowledgement mean the value survives the relevant replica restart?
2. Do reads and writes use the same fixed set of three replicas?
3. Does the reader always compare the versions from all R valid responses?
4. How should the store handle two versions that are truly concurrent?

I would start with the quorum math. We have N=3, W=2, and R=2. Since R+W is greater than N, every read quorum and completed write quorum must share at least one replica.

That overlap normally lets the read see the completed write. But the overlapping replica must still hold the version it acknowledged.

The client writes v2="Y". Replicas A and B store v2 and acknowledge the write. Replica C still has v1="X" because its update is delayed.

The write succeeds after the two acknowledgements. At this point, A=v2, B=v2, and C=v1.

Replica A then restarts. Its acknowledgement was not durable, which means v2 was not safely kept through that restart. A therefore falls back to v1.

Replica B still contains v2, but B is temporarily unavailable during the next read. Replica C still has v1. The new state is A=v1, B=v2 but unavailable, and C=v1.

The client performs a read with R=2. The read quorum is {A,C}. A returns v1, and C also returns v1.

The reader compares the versions in those two responses. Because neither response contains v2, the highest comparable version it can see is v1. Returning v1 is correct for those responses, but the result is globally stale because acknowledged v2 still exists on unavailable B.

The write quorum {A,B} and read quorum {A,C} still overlap at A. The stale result is possible because A lost the version that made the overlap useful.

If one response contained v2 and another contained v1, the reader should choose v2. It must not choose an older ordered version when a newer one is present.

If two versions are truly concurrent, the datastore uses its defined conflict rule. That is a different case from this example.

This particular read cannot repair A or C to v2 because neither responder has v2. When B becomes available, a later read or an anti-entropy exchange, meaning background replica synchronization, can discover v2 and repair the stale replicas.

The benefit is that R=2 and W=2 normally give useful quorum overlap with only three replicas. A read does not need all three replicas to answer. The downside is that the guarantee depends on important assumptions. An acknowledgement must mean the stored version survives the failure that matters. Reads must also compare versions correctly. Here, A acknowledges v2 but later loses it, while B becomes unavailable. The read sees only v1 from A and C. Read repair cannot restore v2 at that moment because neither responder has it. Recovery must wait until B can expose v2 again.

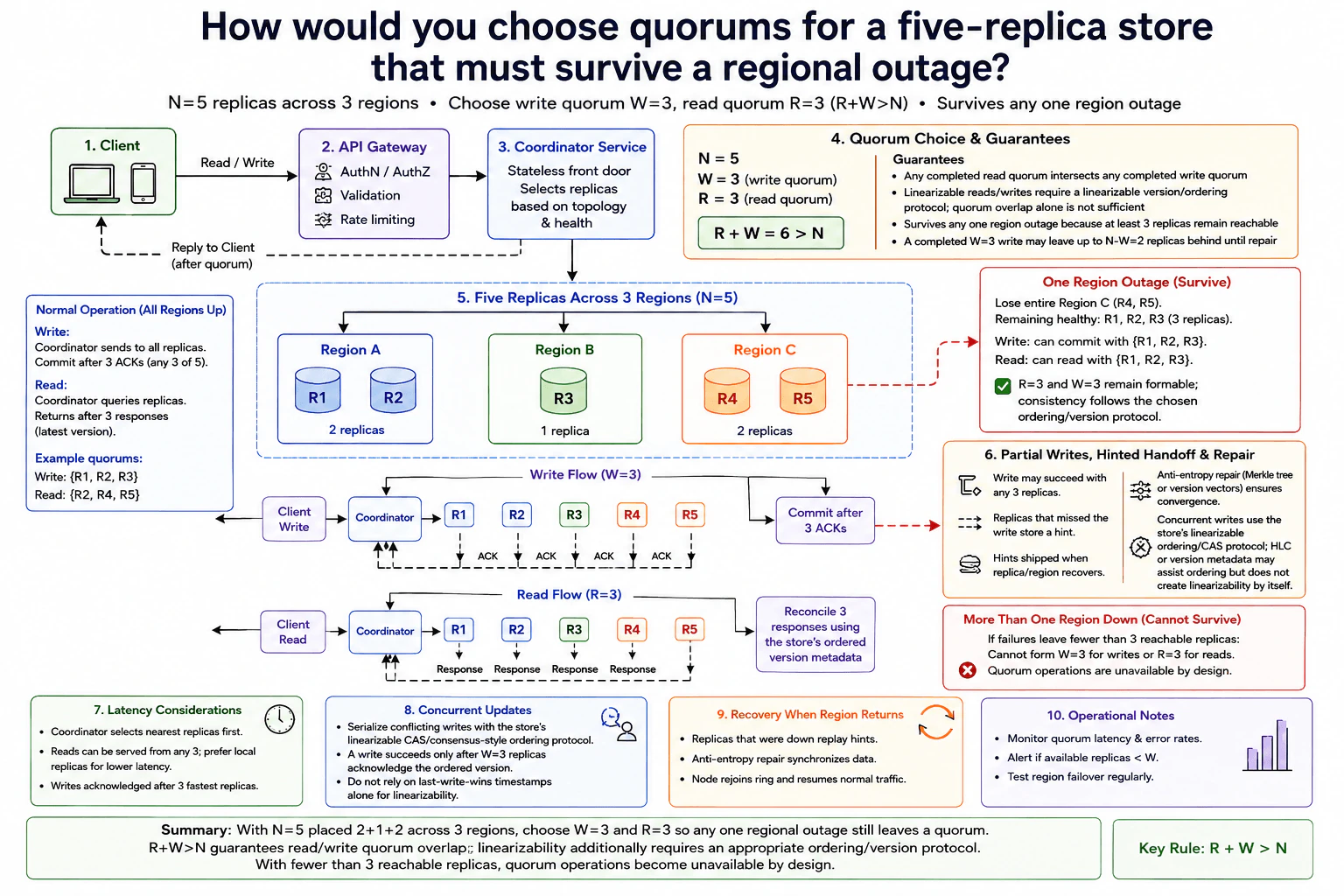

At a high level, the goal is to keep a five-copy store working when one whole region becomes unreachable. The main challenge is keeping reads and writes correct without waiting for every copy. I would explain the write path, the read path, and the outage-and-repair path. With five replicas placed 2+1+2 across three regions, I would use W=3 and R=3. One regional outage still leaves three replicas. The trade-off is that fewer than three reachable replicas make quorum operations unavailable.

The system keeps five copies of the same data in three separate places. It must continue serving users if one whole place suddenly disappears. The difficult part is deciding how many copies must answer before an operation can finish. Requiring too many copies can stop the service during a failure. Requiring too few can make correctness harder. The diagram solves this by spreading the five copies as 2+1+2, requiring three successful answers for both reading and writing, and repairing missing copies after a failed place returns.

1. Do reads and writes need linearizable behavior, meaning completed operations must appear in one correct global order?
2. Is one full regional outage the required failure target, or should the design survive larger failures?
3. Is extra cross-region latency acceptable when three replicas must answer?

I would spread the five replicas 2+1+2 across Region A, Region B, and Region C. Losing any one region therefore removes at most two replicas. At least three replicas remain reachable.

I would choose W=3 for writes and R=3 for reads. R+W is six, which is greater than N=5. That means every completed read quorum intersects every completed write quorum. This overlap helps correctness, but it does not create linearizability by itself. The store also needs the ordering and version protocol shown in the diagram.

A Client first sends its request through the API Gateway. The gateway handles AuthN, AuthZ, validation, and rate limiting. The Coordinator Service then sends the write to replicas.

The coordinator waits for three ACKs. An ACK means that replica accepted the ordered version. Once any three replicas acknowledge it, the write can commit. The coordinator then replies to the Client. A completed W=3 write may leave two replicas behind until they are repaired.

For a read, the Client again reaches the Coordinator Service through the API Gateway. The coordinator asks replicas for the value and waits for three successful responses.

It checks those three responses using the store's ordered version metadata. This lets the coordinator select the value that follows the store's ordering rules. It then returns that value to the Client.

Suppose Region C becomes unreachable. R4 and R5 disappear, but R1, R2, and R3 remain. Both W=3 and R=3 are still formable, so quorum operations can continue.

A replica that misses a write can receive a hint later. When the region returns, hints replay missed writes. Anti-entropy repair compares replica state and fills any remaining gaps. The recovered replicas then rejoin normal traffic.

Conflicting writes use the store's linearizable CAS or consensus-style ordering protocol. A write succeeds only after W=3 replicas acknowledge the ordered version. Last-write-wins timestamps alone are not enough for linearizability.

For lower latency, the Coordinator Service prefers nearby healthy replicas. Reads can use any three valid responses. Writes finish after the three fastest required acknowledgements.

The main availability limit is simple. If failures leave fewer than three reachable replicas, the system cannot form W=3 or R=3. Quorum reads and writes therefore stop by design.

Operationally, I would watch quorum latency, error rates, and the number of available replicas. The diagram also calls for regular regional failover testing. This design favors correctness when the failure is larger than planned.

The benefit is that R=3 and W=3 still work after any one region fails because the 2+1+2 placement leaves at least three replicas. Read and write quorums also overlap. The downside is extra latency because some requests may need replicas in other regions. Another downside is lower availability during a larger failure. With fewer than three reachable replicas, quorum reads and writes stop. Hinted handoff and anti-entropy repair also add recovery work. They are useful because replicas that missed writes can catch up when a region returns. We accept that extra work to protect correctness.

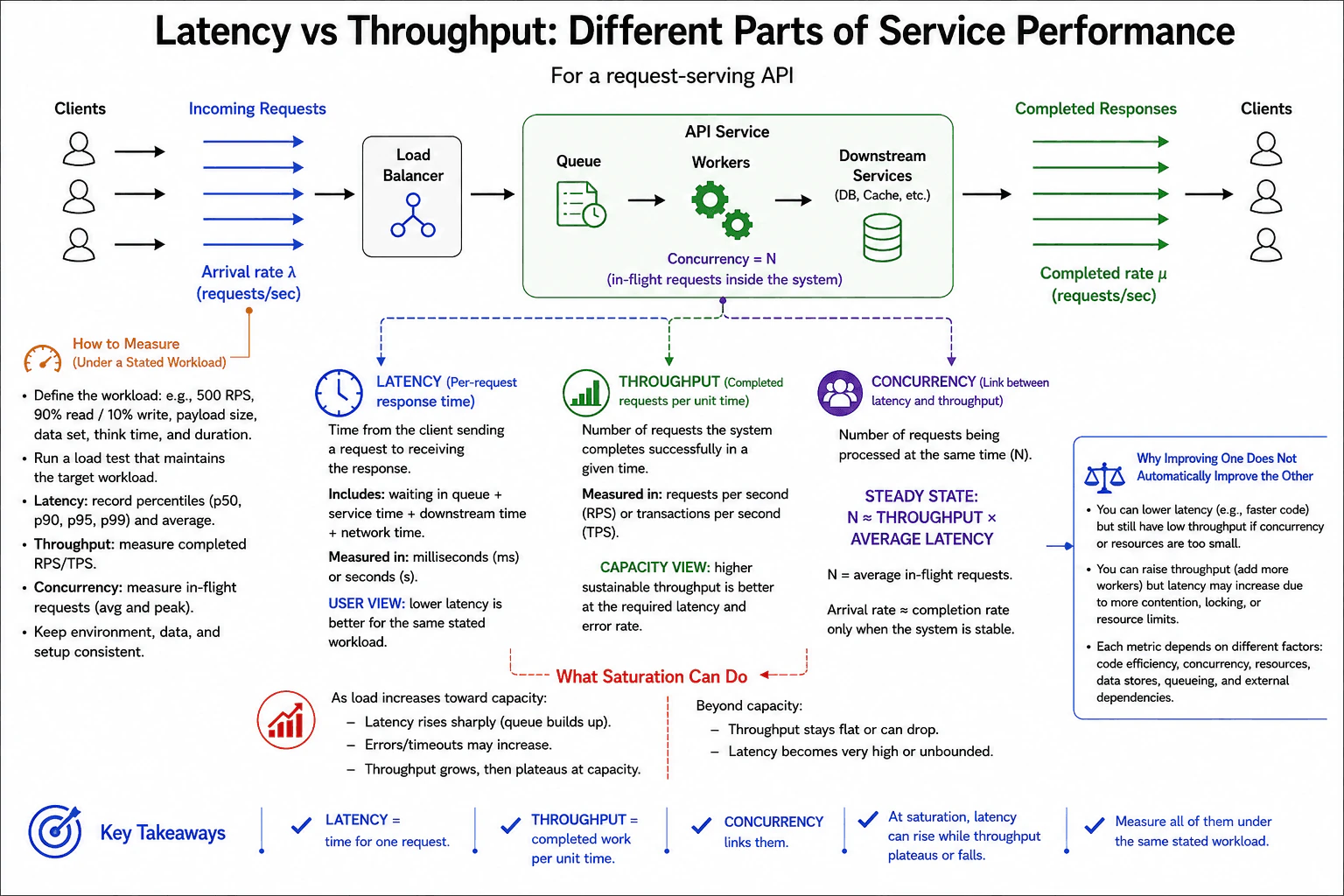

I would start by defining one clear workload and measuring latency and throughput under that same workload. Latency is the time for one request from client send to full response. Throughput is how many requests the service completes per second. Concurrency links them because, in a stable system, average in flight requests are approximately throughput times average latency. As load rises, throughput may increase at first, but near saturation latency can rise sharply and throughput can flatten or fall. So I would measure both together with concurrency and error rate before deciding what to change.

This question asks you to explain two simple parts of service speed and capacity. The first is how long one person waits for one answer. The second is how much total work the service finishes during a set amount of time. It also asks what happens when many requests are active together, how to measure the results fairly under the same test conditions, what happens when the service gets too busy, and why making one result better does not always make the other result better at the same time.

1. What workload should I assume, such as requests per second, read and write mix, payload size, data set, think time, and test duration?
2. Should I measure from the client sending the request until the full response returns, and also separate queue wait, service work, downstream calls, and network time?
3. Should I include error rate and timeouts with latency, throughput, and concurrency?
4. Should I assume the service is in a stable state when I explain the relationship between completed throughput and average concurrency?

I would start with one request serving API and one stated workload. For example, I can use 500 requests per second, 90 percent reads, 10 percent writes, a known payload size, a known data set, and a fixed test duration. The exact numbers are only an example. The important point is to keep the workload and environment the same when comparing results.

Latency is the response time for one request. I measure it from the moment the client sends the request until the full response comes back. That end to end time can include waiting in the request queue, work in the API service, downstream database or cache time, and network time. I would report percentiles such as p50, p90, p95, and p99 because an average can hide slow requests.

Throughput is completed work per unit time. For this API, I would measure successful completed responses per second during a steady interval. Latency answers how long one request takes. Throughput answers how much work the service finishes.

Concurrency is the number of requests that are in flight inside the system at the same time. In a stable system, average concurrency is approximately completed throughput multiplied by average latency. This relationship is useful because it connects response time, completed work, and the amount of work active inside the service. Arrival rate and completion rate are approximately equal only when the system is stable. If requests are building up in a queue, they may be very different.

I would use service metrics, such as Prometheus metrics or equivalent cloud monitoring, to watch latency percentiles, completed throughput, error rate, queue length, concurrency, CPU, and memory. If I need to understand where request time is going, I would use OpenTelemetry traces to separate queue wait, API work, downstream calls, and network time. Tracing is useful for timing across components, but sampling and instrumentation can add some overhead, so it is supporting evidence rather than the only proof.

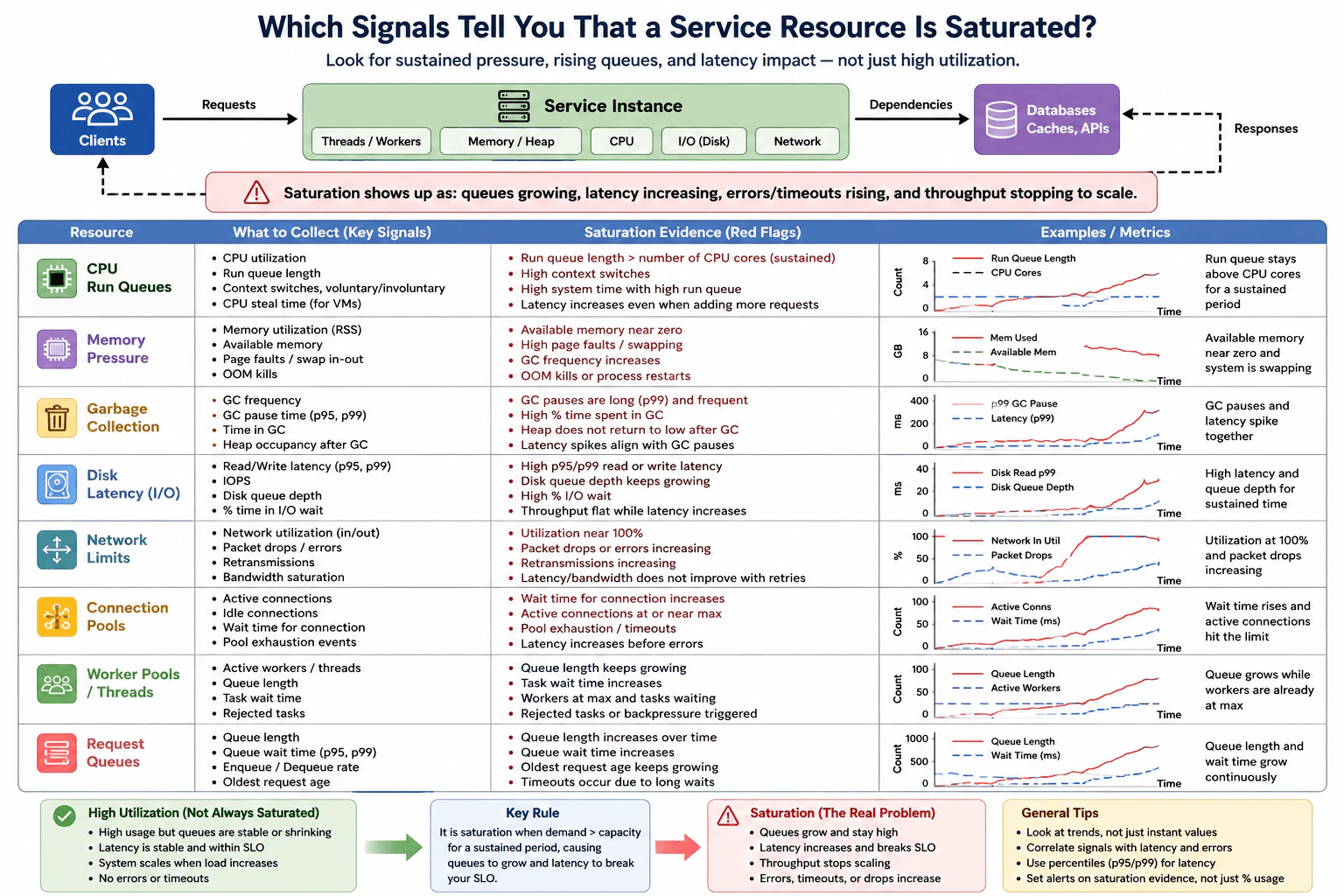

Next I would look for saturation. As load approaches capacity, queue wait can grow and latency can rise sharply. Errors and timeouts may also increase. Throughput often grows at first and then reaches a limit. Beyond that point, throughput may stay flat or even fall while latency becomes very high. This is why a service can look busy without completing more useful work.

I would not choose an optimization until the measurements show the real bottleneck. If the evidence shows queue pressure, downstream delay, CPU pressure, resource contention, or a worker limit, I would make one change that directly addresses that measured problem. Then I would rerun the same workload and compare latency percentiles, throughput, concurrency, error rate, queue behavior, and resource use. I would also verify that responses remain correct and check that the bottleneck did not simply move to another dependency.

Finally, improving one measurement does not automatically improve the other. Faster code can reduce latency while throughput remains low if concurrency or another resource is limited. Adding more workers can increase throughput while latency becomes worse because of contention, queueing, connection pressure, or a slow downstream service. The right result depends on the required latency, error rate, and sustainable throughput for the stated workload.

1. Define one representative workload, including request rate, request mix, payload size, data set, think time, and duration.
2. Define the latency boundary from client send to full response.
3. Capture a baseline with latency percentiles, completed throughput, average and peak concurrency, error rate, queue length, CPU, and memory.
4. Use service metrics for trends and OpenTelemetry traces when request timing must be separated across the queue, API work, downstream calls, and network time.
5. Increase load carefully and watch for saturation, such as rising queue wait, rising latency, errors, and throughput that stops improving.
6. Use the evidence to classify the bottleneck, such as queue pressure, CPU pressure, downstream delay, connection limits, or contention.
7. Make one change that addresses the measured bottleneck.
8. Run the same workload again and compare the same measurements.
9. Verify response correctness and confirm that the bottleneck did not move somewhere else.
10. Continue monitoring the same measurements after deployment.

There is no important algorithmic complexity calculation for this question. The practical cost comes from the measurement process. A realistic load test consumes CPU, memory, connections, and test time. Higher concurrency can also increase memory use, queue size, connection use, and downstream pressure. Service metrics are usually low cost. Distributed traces can add instrumentation and sampling overhead. The team must also spend time keeping the workload, data, environment, and measurement boundaries consistent so that the comparison is meaningful.

Common mistakes include optimizing before measuring, using averages without latency percentiles, and comparing results from different workloads. Another mistake is treating arrival rate as completed throughput when requests are building up in a queue. It is also wrong to assume that adding workers or concurrency always improves performance. More concurrency can increase memory use, connection pressure, contention, and downstream load. Other mistakes include ignoring queue wait, ignoring downstream time, using a microbenchmark as proof of service capacity, changing several things at once, skipping correctness checks, and failing to check whether the bottleneck moved elsewhere.

Start with one stated workload and one clear measurement boundary. Define latency, throughput, and concurrency in simple words. Then explain their stable state relationship, show what saturation does, and finish with the key tradeoff that helping one measurement does not automatically help the other.

I would start with the service latency objective and correlate latency, throughput, errors, and queueing with resource specific signals. High utilization alone does not prove saturation. I call a resource saturated when demand stays above useful capacity and I see sustained waiting, growing queues, rising latency, errors or timeouts, or throughput that stops increasing. I would check CPU run queues, memory pressure, garbage collection, disk latency, network limits, connection pool waits, worker pool queues, and request queue delay during the same traffic period.

The service is receiving more traffic, so I need to find out whether any limited resource can no longer keep up. I first watch what users experience, such as slower responses or failed requests. Then I check whether work is waiting inside the service. A busy resource is not automatically a problem. It becomes a capacity problem when waiting keeps growing, response time gets worse, failures appear, or completed work stops growing even though more work arrives. I compare these changes over the same period and against the normal baseline.

1. What latency objective should the service meet, and which percentile matters most?
2. What traffic level and request mix represent normal and peak load?
3. What limits exist for CPU, memory, network bandwidth, connection pools, worker pools, and request queues?
4. Should I diagnose one service instance first, or include databases, caches, APIs, and other dependencies in the measurement boundary?

I would begin with the user visible symptoms and the established latency objective. I would graph request rate, p95 and p99 latency, completed throughput, error rate, and timeout rate over the same time window. This shows whether increasing demand is actually hurting the service and gives me a baseline before I inspect individual resources.

For CPU, I would collect utilization per core, run queue length, context switches, system time, and CPU steal time when virtual machines are involved. High CPU utilization can still be healthy when requests are completing quickly and runnable work is not waiting. Stronger evidence of saturation is a run queue that remains above the available CPU core count while request latency rises as traffic increases. That shows runnable work is waiting for CPU time.

For memory, I would collect process memory usage, available memory, page faults, swap input and output, and out of memory termination events. High memory usage alone can be normal. Saturation is more likely when available memory approaches zero, page faults or swapping increase, garbage collection becomes more frequent, or the process is terminated or restarted because memory cannot be provided.

For garbage collection, I would collect collection frequency, p95 and p99 pause time, percentage of time spent in collection, allocation rate, and heap occupancy after collection. Long and frequent pauses, increasing collection time, and a heap that does not return to a healthy level after collection are signs of pressure. I would correlate those pauses with request latency because the diagram shows that garbage collection pauses and service latency can rise together.

For disk input and output, I would collect read and write latency at useful percentiles, input and output operations per second, throughput, disk queue depth, and time waiting for input and output. High disk activity alone is not enough. Growing queue depth, rising p95 or p99 disk latency, high input and output wait, and service throughput that stays flat while latency increases are stronger saturation signals.

For the network, I would collect incoming and outgoing utilization, packet drops, errors, retransmissions, and the configured bandwidth limit. High bandwidth use can still be healthy if delivery and latency remain stable. Saturation becomes more likely when utilization reaches the link limit and packet drops, retransmissions, latency, or request failures increase while useful throughput no longer grows.

For a connection pool, I would measure active connections, idle connections, connection wait time, the configured maximum, and pool exhaustion events. Many active connections are not automatically a problem. Stronger evidence is that active connections remain at or near the maximum while requests increasingly wait for a connection, time out, or experience higher latency.

For worker pools or thread pools, I would collect active workers, available workers, work queue length, task wait time, and rejected tasks. If workers remain fully occupied and the queue keeps growing, arriving work is exceeding the processing rate of that bounded pool. I would also check whether workers are blocked on databases, disk, network calls, locks, or other dependencies before deciding to add more workers.

For the request queue, I would watch queue length, p95 and p99 queue wait time, arrival rate, processing rate, and the age of the oldest request. A short stable queue can absorb a normal burst. A queue that continues to grow, with increasing wait time and older requests remaining in the queue, is direct evidence that demand is exceeding processing capacity.

The main distinction is waiting and service impact. High utilization means a resource is busy. Actual saturation means demand exceeds useful capacity for a sustained period. I expect to see queues or waiters grow, latency break the objective, throughput stop scaling or fall, and often errors, timeouts, drops, or rejected work.

I would use application, operating system, container, and infrastructure metrics for the first investigation. Prometheus, Kubernetes metrics, or cloud monitoring can provide these first level signals. Distributed tracing can show where request time is being spent across the service, databases, caches, APIs, and other dependencies. If CPU behavior needs deeper investigation, operating system traces, eBPF profiles, or a supported continuous profiler can provide sampled call stack evidence. Tracing and profiling can add overhead or use sampling, so I would use them as supporting evidence rather than treating one sample as final proof.

After identifying the saturated resource, I would change that measured bottleneck rather than increasing every limit. Depending on the evidence, that could mean adding appropriate capacity, reducing expensive work, lowering allocation pressure, correcting a connection or worker pool size, reducing storage work, or applying bounded backpressure. Adding more workers or connections without checking downstream capacity can simply move the bottleneck to a database, disk, network link, cache, or external API.

I would verify the change with the same representative requests, traffic shape, data size, and dependency behavior used for the baseline. I would compare p95 and p99 latency, throughput, errors, queue delay, and the original saturation signal. I would also verify correct responses and check whether another resource became the new bottleneck. After deployment, I would keep watching the same measurements and alert on sustained pressure and user impact rather than on utilization alone.

1. Define the service latency objective and the user visible symptom. Record request rate, p95 and p99 latency, throughput, errors, and timeouts.
2. Capture a normal baseline before traffic reaches the suspected capacity limit.
3. Reproduce or observe the problem with representative traffic, request types, data sizes, and dependency behavior.
4. Check CPU run queue length, memory pressure, garbage collection pauses, disk latency and queue depth, network loss and retransmissions, connection pool waiting, worker pool waiting, and request queue growth.
5. Separate utilization from waiting. A busy resource can be healthy when latency, queues, and throughput remain stable. Sustained waiting or queue growth is stronger evidence of saturation.
6. Correlate each suspected resource with latency, throughput, errors, and timeouts during the same time period.
7. Use production metrics first. Add distributed tracing, operating system traces, eBPF profiles, or a continuous profiler only when deeper evidence is needed.
8. Change only the measured bottleneck. Keep worker counts, connection counts, queues, and other scarce resources bounded.
9. Repeat the same representative workload and compare the original measurements before and after the change.
10. Verify correct behavior, confirm that the original bottleneck is reduced, check that another dependency did not become saturated, and monitor the same signals after deployment.

The basic monitoring cost is usually small compared with the service workload, but collecting more metrics, traces, and profiles uses storage, processing, and operational effort. Detailed tracing and profiling can add overhead and can use sampling, so collection must be controlled. Increasing CPU, memory, connections, workers, replicas, disk capacity, or network capacity can increase infrastructure cost and may move pressure to another dependency. Larger worker and connection pools can also consume more memory and increase contention. The practical goal is to collect enough evidence to find the actual limiting resource, make one justified capacity change, and measure the full service again.

A common mistake is treating high CPU, memory, disk, or network utilization as automatic proof of saturation. Another is looking only at average latency instead of p95 or p99 latency and queue waiting. Engineers may ignore run queues, page faults, swapping, garbage collection pauses, disk queue depth, packet retransmissions, connection waiters, worker queues, or request queue age. Adding more workers or connections without checking downstream capacity can move the bottleneck and make failures worse. Other mistakes include testing with unrealistic traffic, changing several limits before collecting a baseline, trusting one profiler sample as complete proof, comparing different workloads before and after a change, and failing to verify correctness after the capacity change.

Explain saturation as sustained waiting caused by demand exceeding useful capacity. Start with latency, throughput, errors, and queueing, then walk through the resource signals. Make the distinction explicit: high utilization means busy, while growing queues, increasing wait time, rising latency, stalled throughput, timeouts, drops, or rejected work show actual saturation.
